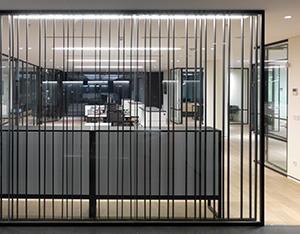

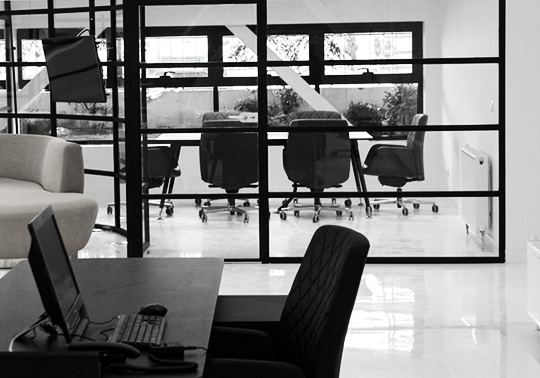

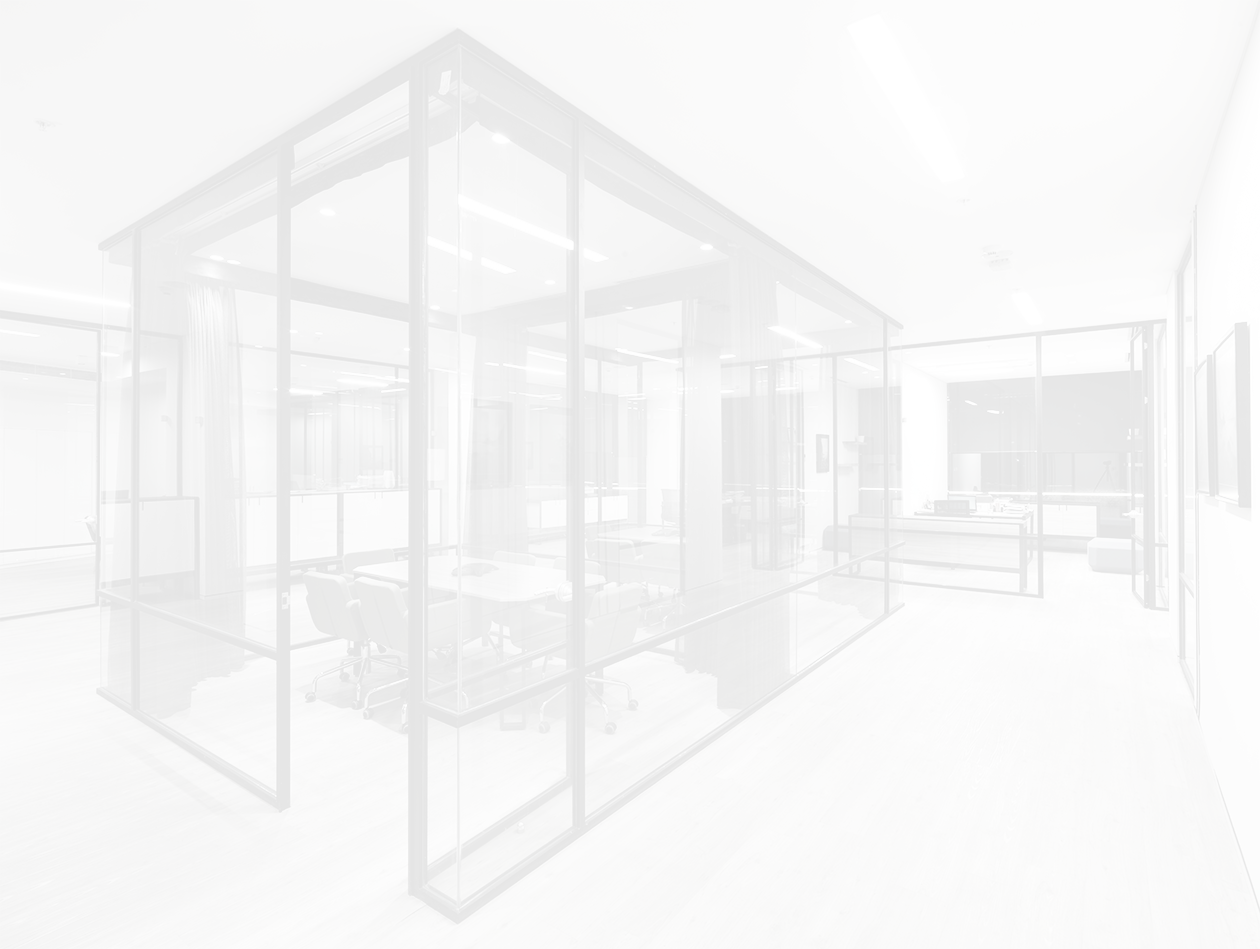

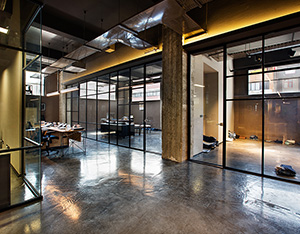

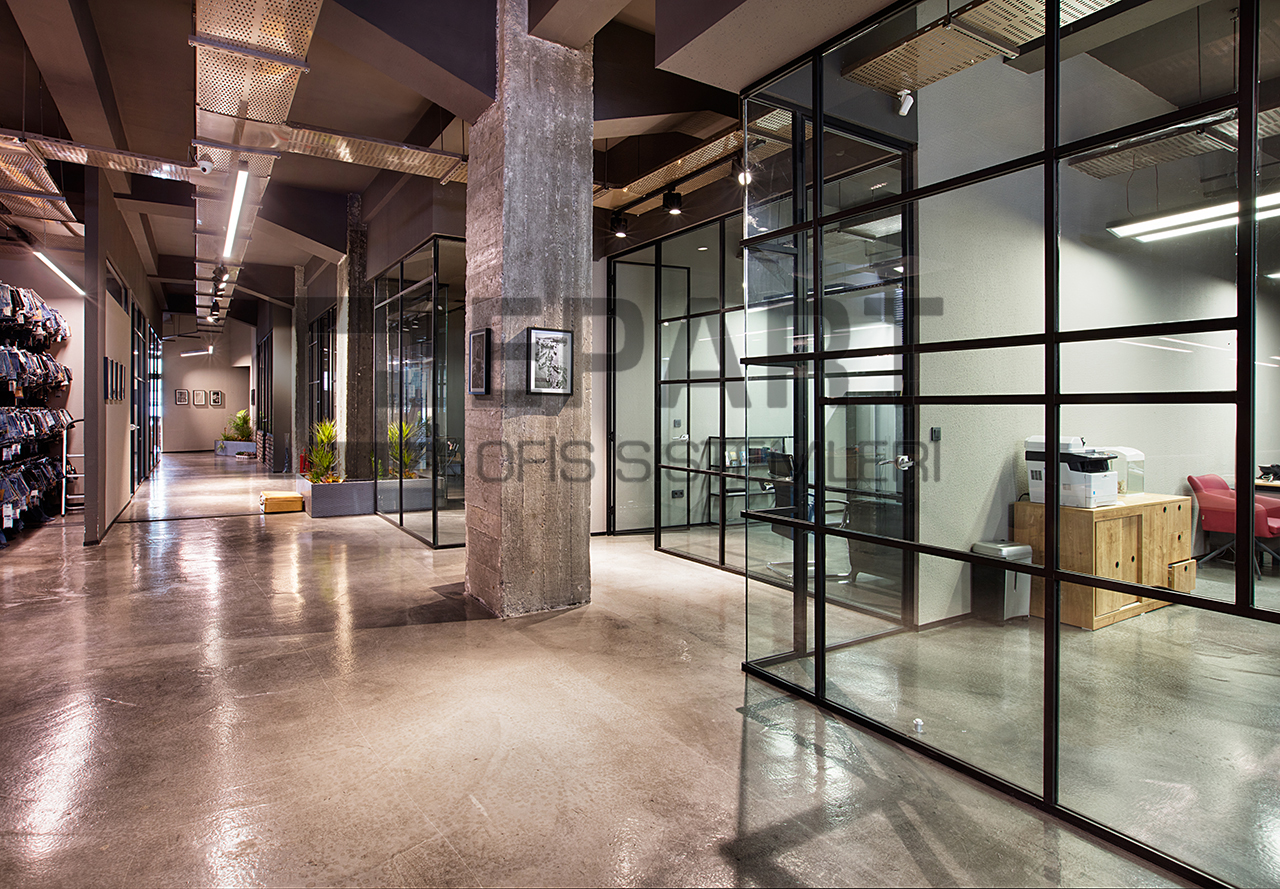

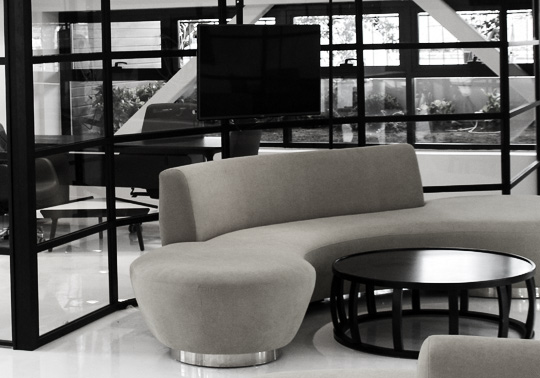

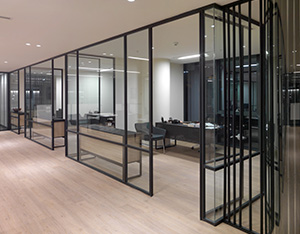

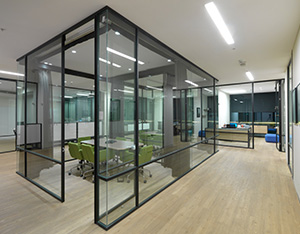

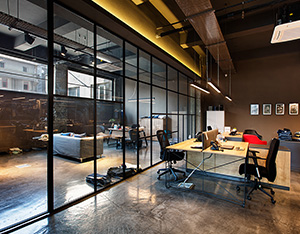

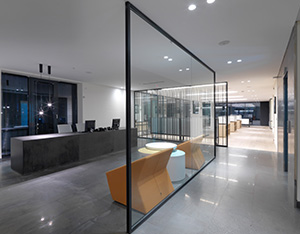

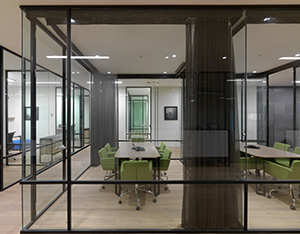

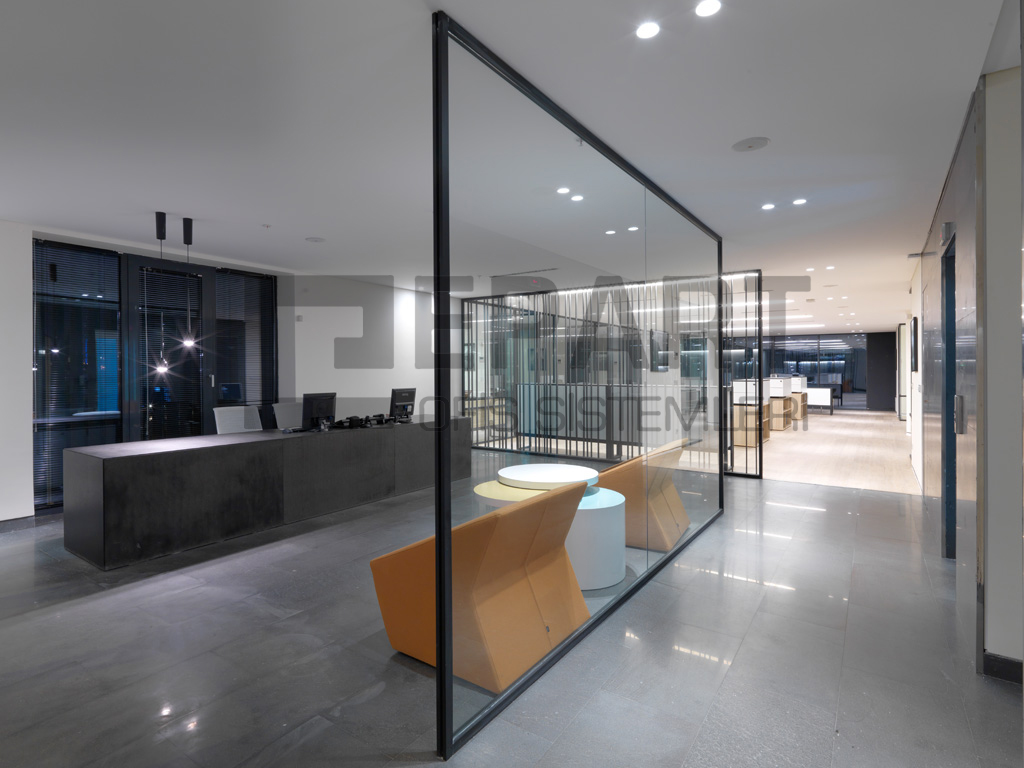

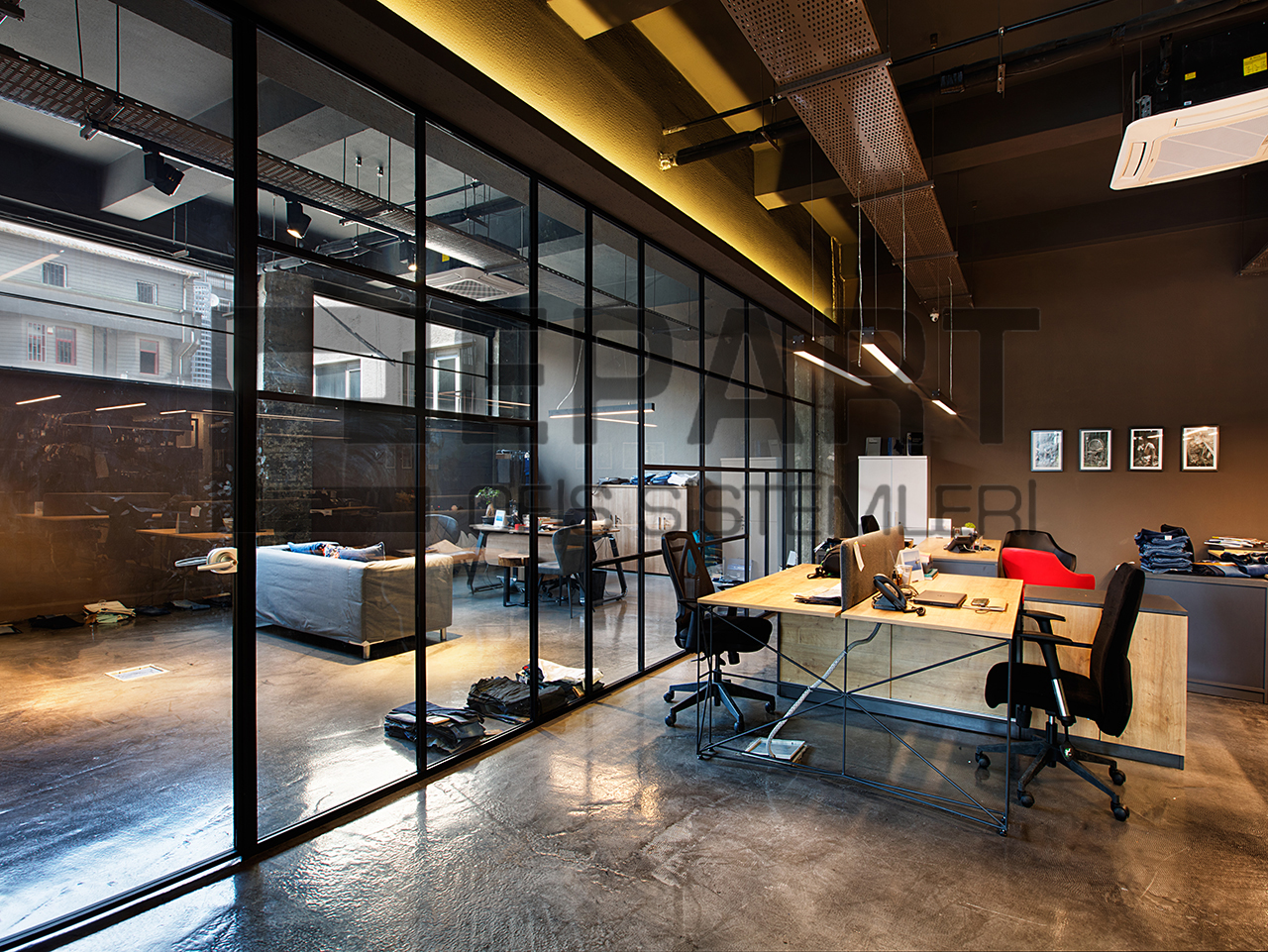

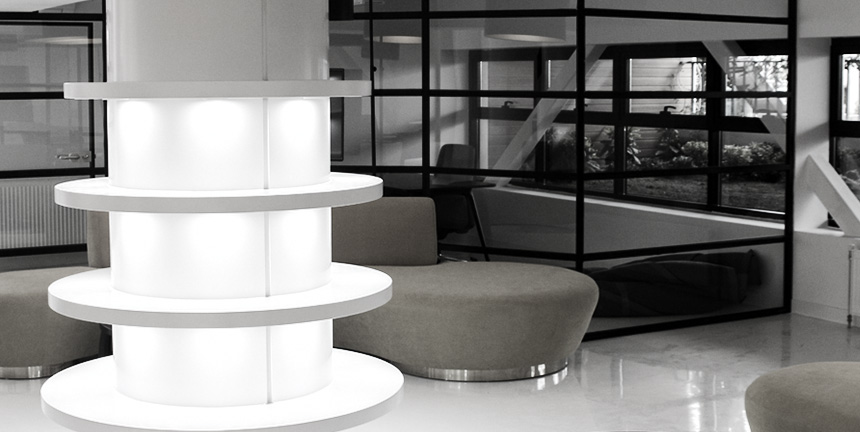

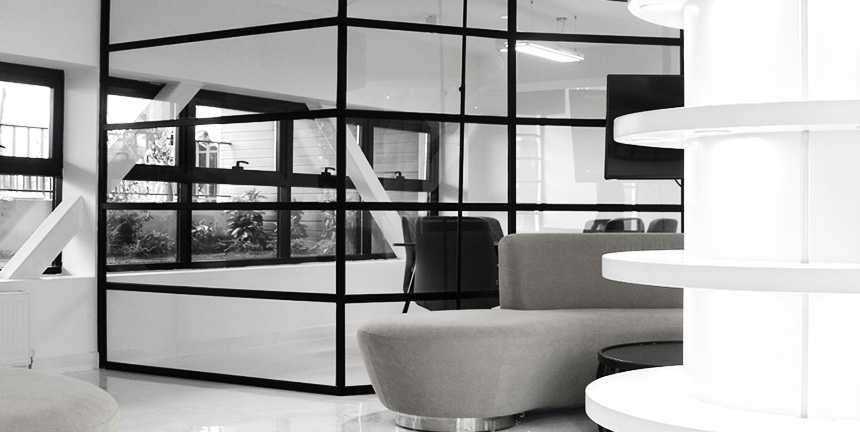

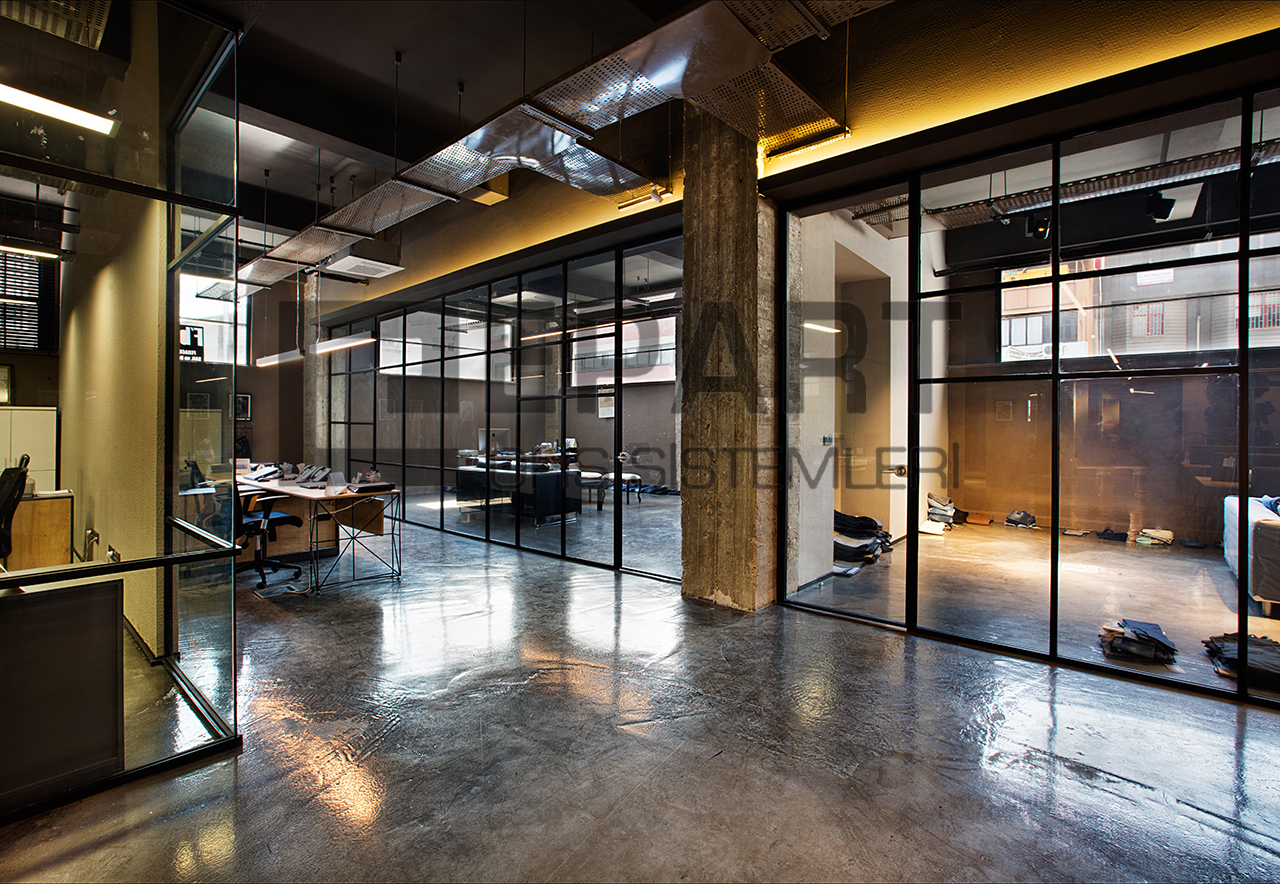

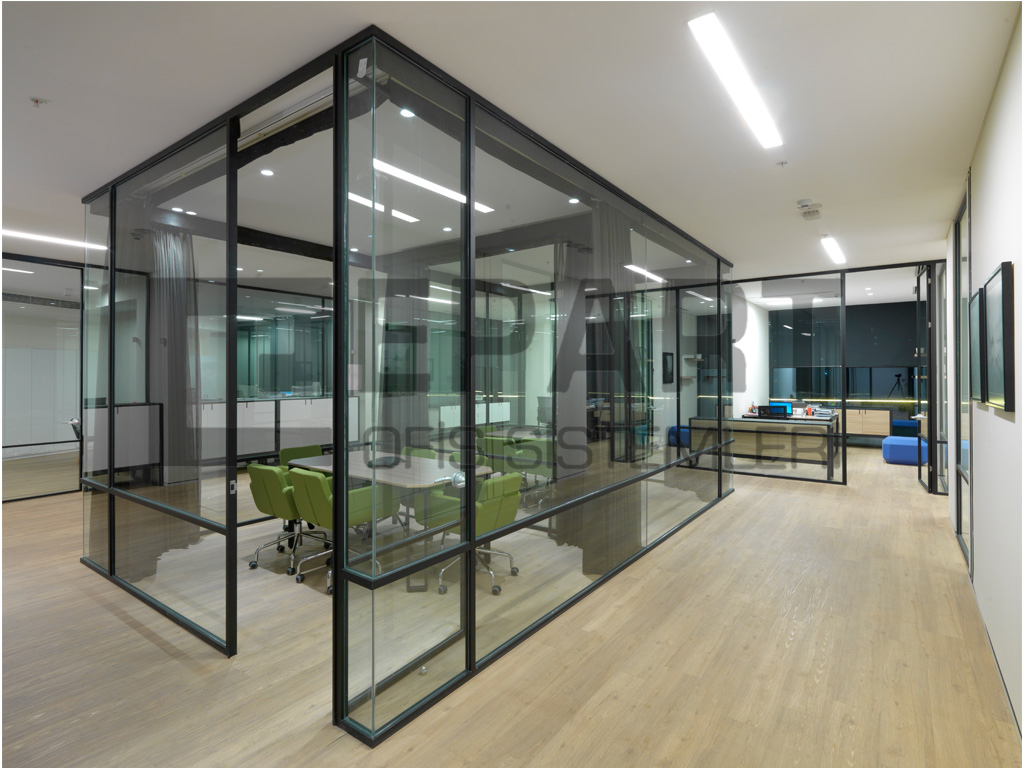

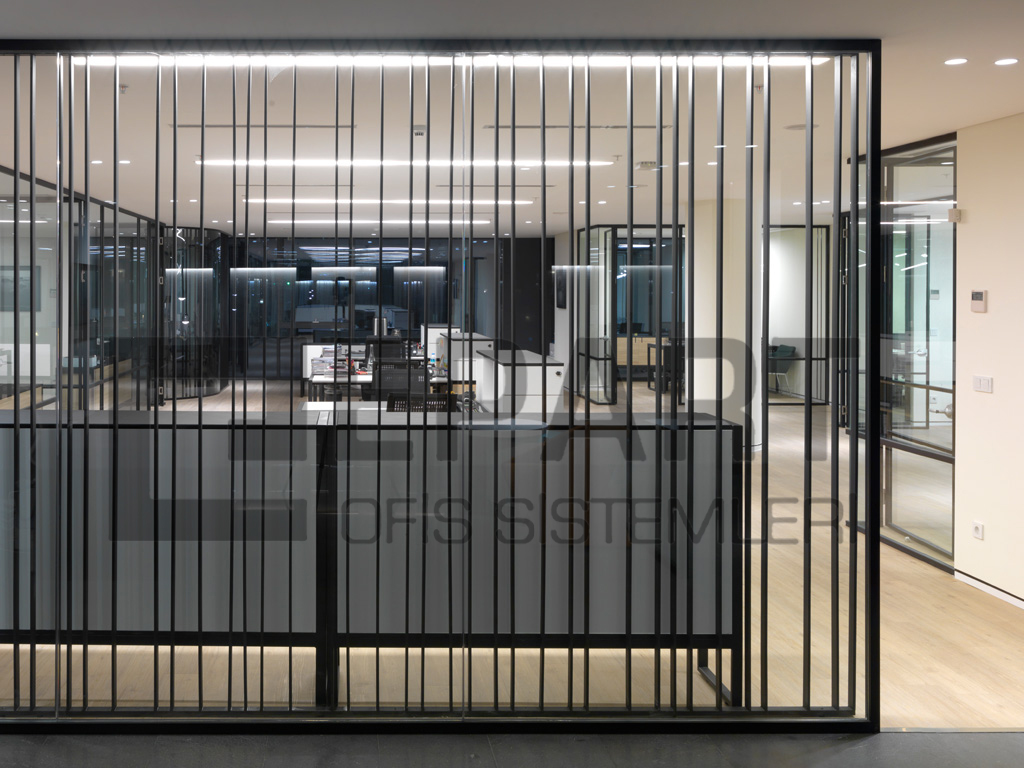

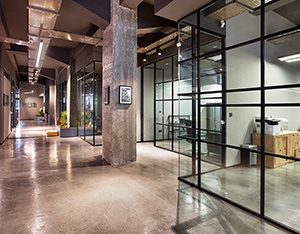

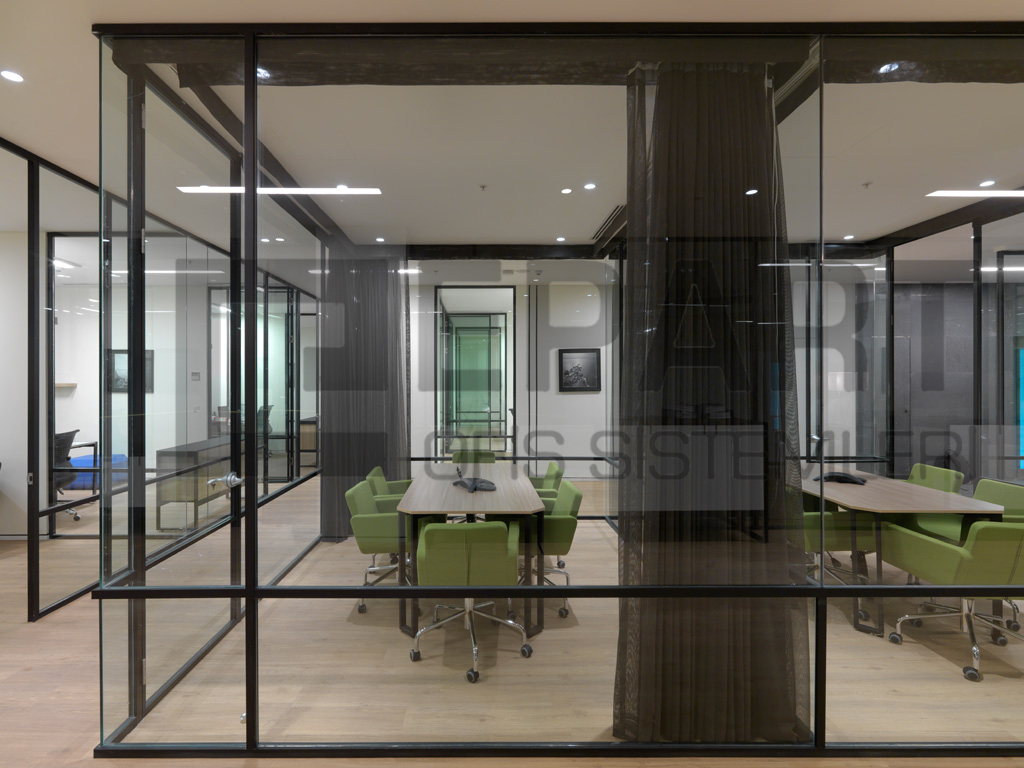

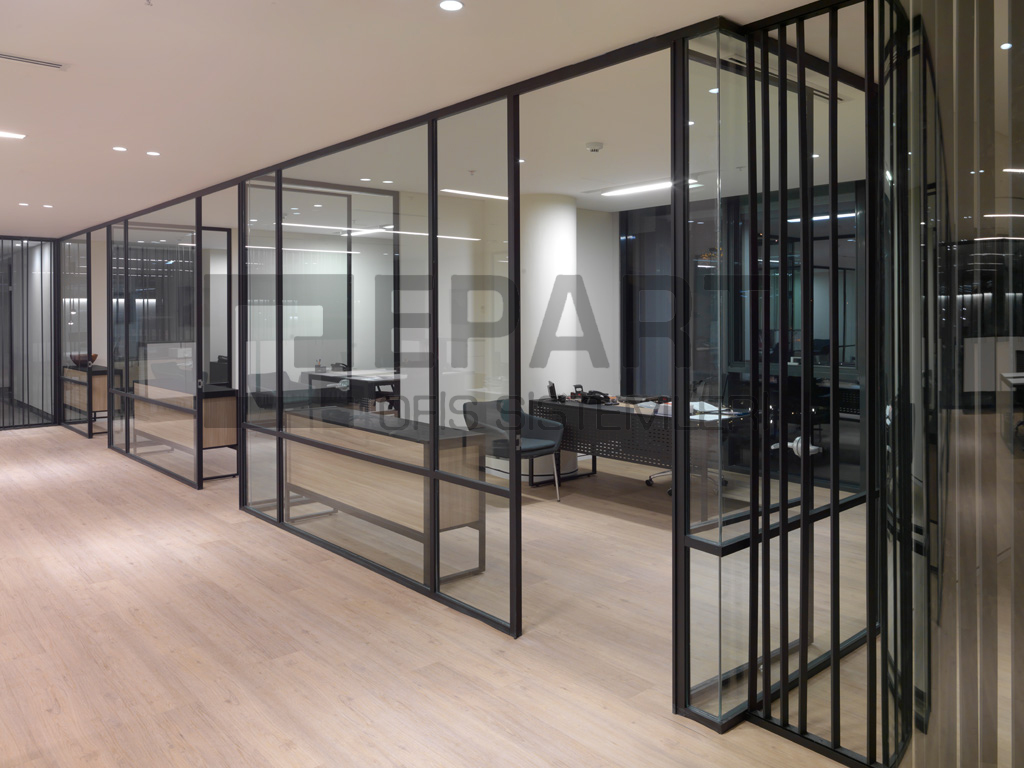

Black Art offers the magic of black to offices where glass partition walls are applied in its single-glazed system, where simplicity and design richness are presented together.
The design comes alive by bringing a record of demountable partitions to the door and presenting the concept of transparency and generosity without losing visual integrity.
Black Art single glazed office partition system, horizontal and vertical section system brings minimalist architecture to the forefront.
|Wall Thickness||42 mm|
|Widths||Preferred grids 300/600/900/1000/1100 mm|
|Heights||2100 – 3250 mm|
|Weight||25 – 42 kg/m2|
|Profile System||Two-piece anodized aluminum clip-on cover – ceiling-floor-wall-base profile|
|Tolerance||+/- 10 mm in height and width|
|Glasses||45 degree corner grinding 4+4,5+5,6+6 mm laminated or 6-8-10mm tempered glass, horizontally and vertically registered|
|Vertical Connection||With System profiles|
|Horizontal Connection||With System profiles|
|Door Frames||Aluminum E6/EV1 Anodized, electrostatic powder paint|
|Door Wing||20x40mm framed, horizontal and vertical registered security glass sash or frameless Melamine, laminate, solid veneer security wing|
|Door Accessory||Mab and Hoppe brand lock, stainless cane handle and so on|
|Hinge||Aluminum or stainless hinge etc|
|Sound Insulation||Rwp < 42db|
|Corner||Turns With glass-glass joint or aluminum corner profiles|
|Solid Module||Solid or laminated covered edges with 1 mm PVC band on both sides panel|
|Station Profile||50x150 mm, 2mm wall thickness aluminum profile|
