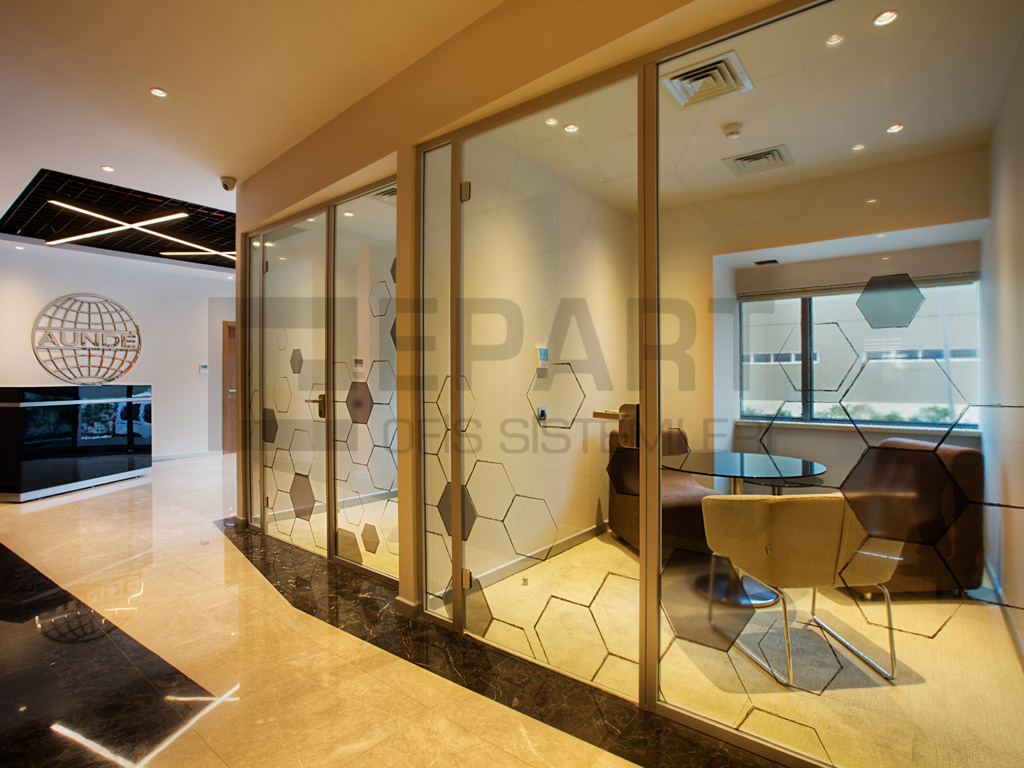

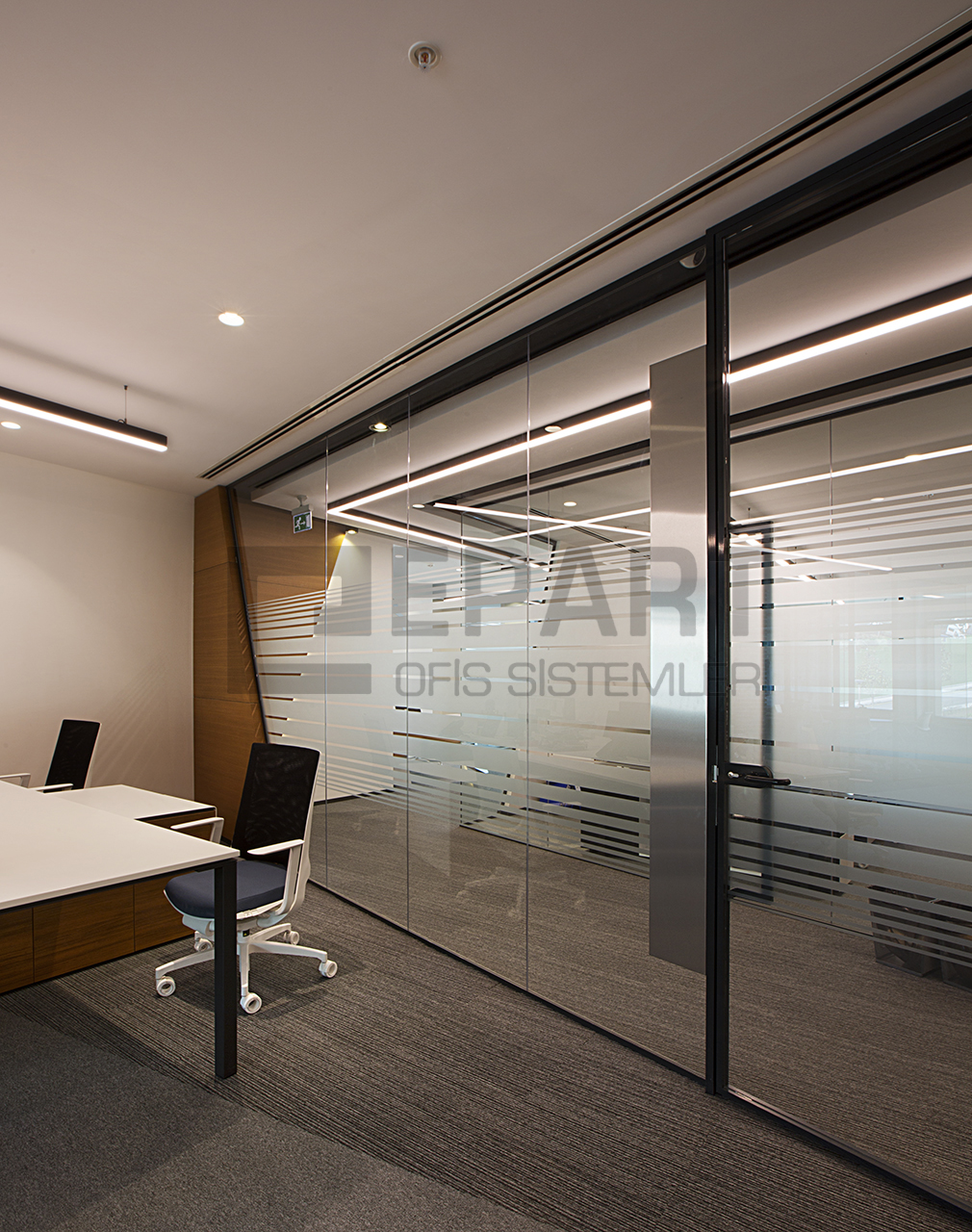

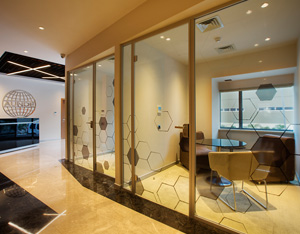

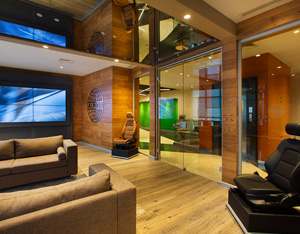

Lifestyle has brought up the need to apply a single glazed partition wall (glass to glass) in spaces. Single glazed partition walls can be made of colored, sandy glass, etc. The system, in which a minimum thickness profile is used, creates plain lines with maximum transparency.

Sturdy modules placed next to the doors of the single glass partition offer the possibility to install and intervene air conditioning control panels, luminaires, and management panels.

Single glass partition, a system designed for a focused work tempo while respecting visual simplicity. The solution was to minimize the thickness of walls, ceilings and floors and simplify the space.

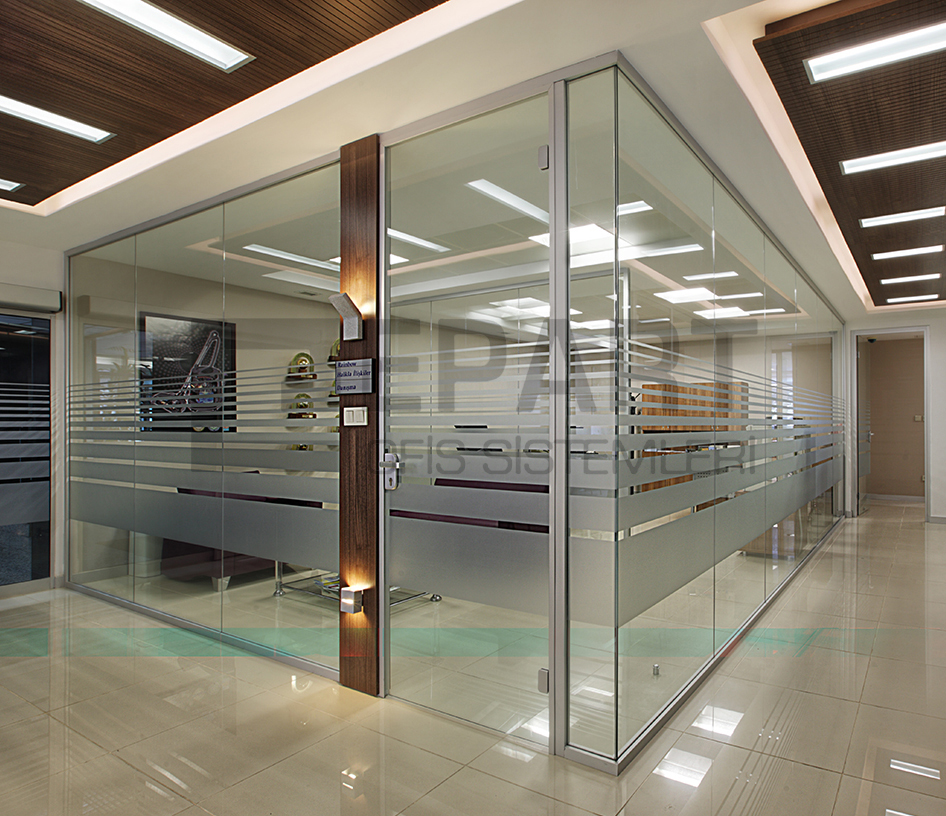

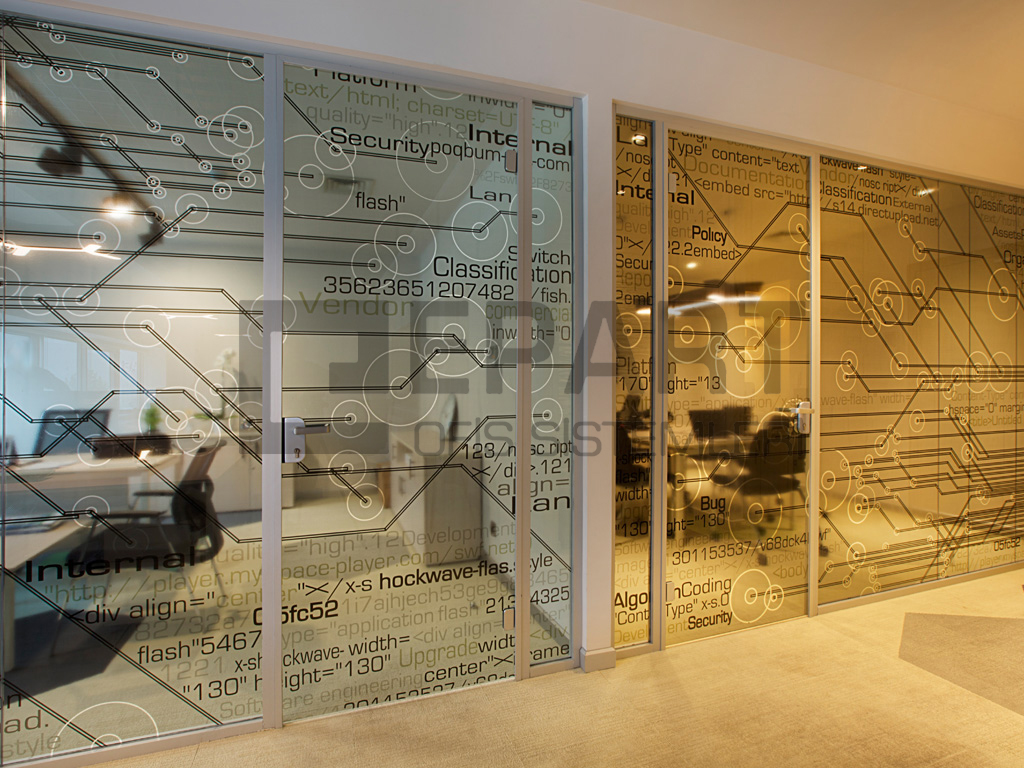

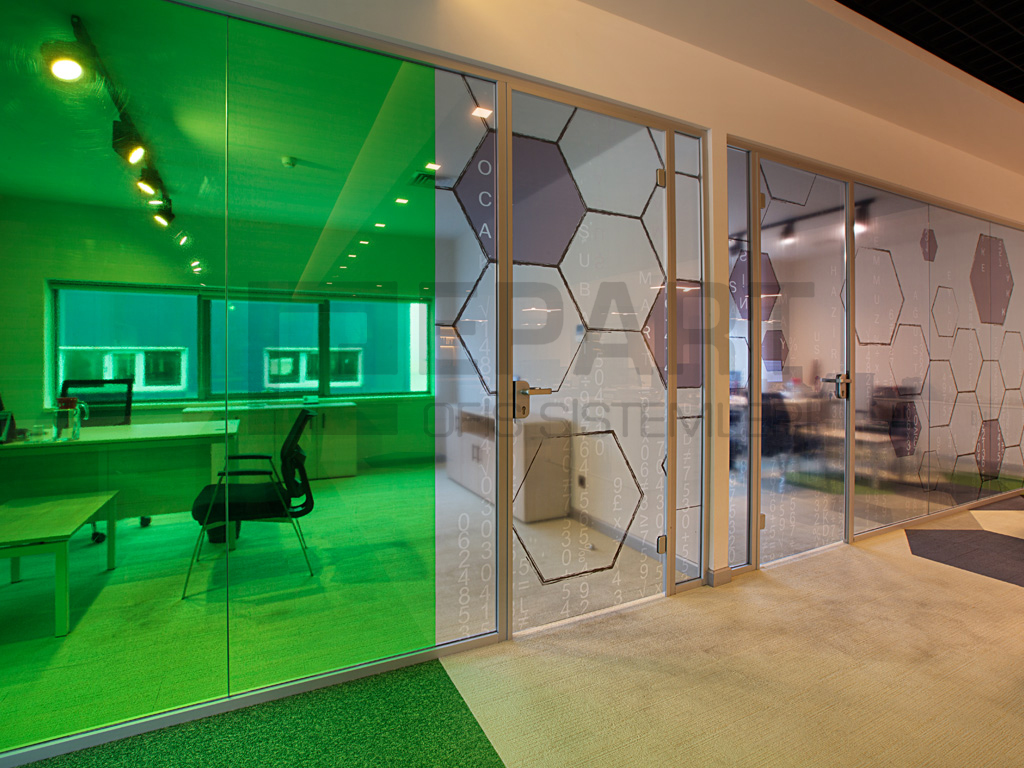

Translucency and visual depth can be achieved using colored film or sand film in a single glass partition system.

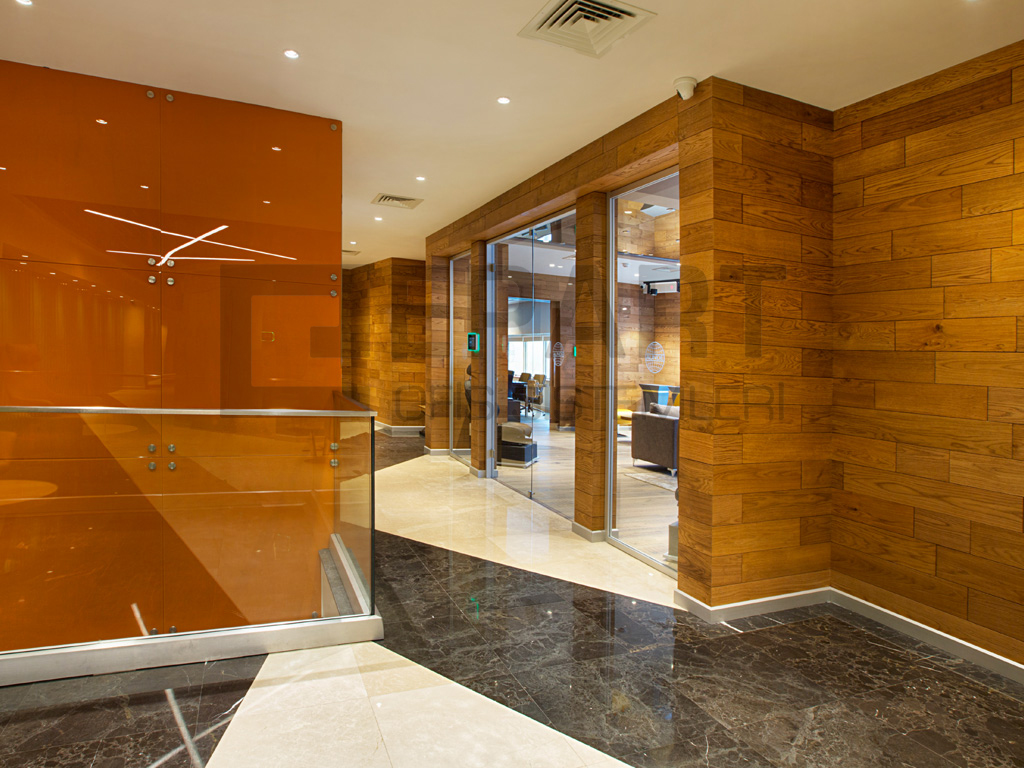

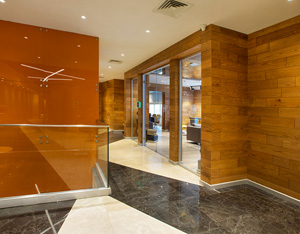

In single-glazed partition walls, the door module is designed as one piece as up to the ceiling, thus strengthening the space and adding depth

Single Glazed Glass to Glass System

Arkeon

Contact

TECHNICAL SPECIFICATIONS

Wall Thickness	42 mm
System Thickness	45 mm
Widths	Preferred grids 300/600/900/1000/1100 mm
Heights	2100 – 3250 mm
Weight	25 – 42 kg/m2
Profile System	Two-piece anodized aluminum clip-on cover – ceiling floor wall profile
Tolerance	+/- 10 mm in height and width
Vertical Connection	Transparent 'H' profile with polycarbonate-based silicone band between two glasses
Door Frames	Aluminum E6/EV1 Anodized, electrostatic powder paint
Door Wing	Melamine, laminate, natural veneer and security glass wing
Door Accessory	MAB brand handle lock or HAFELE WERNER stainless cane handle and similar
Hinge	MAB hinge or stainless hinge etc
Sound Insulation	Rwp < 42db
Corner Trims	With two-channel transparent (I) profiles or with aluminum corner profiles
Solid Module	Solid or laminated panel with covered edges 2 mm PVC band
Station Profile	50*150 mm, 2mm wall thickness aluminum profile
