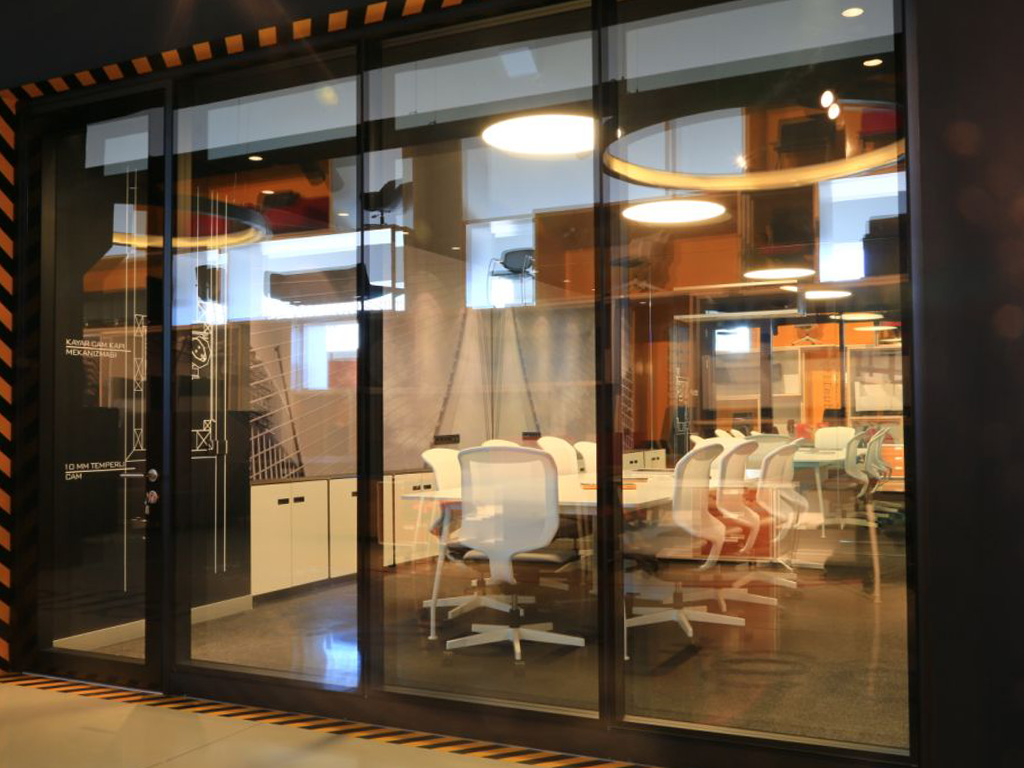

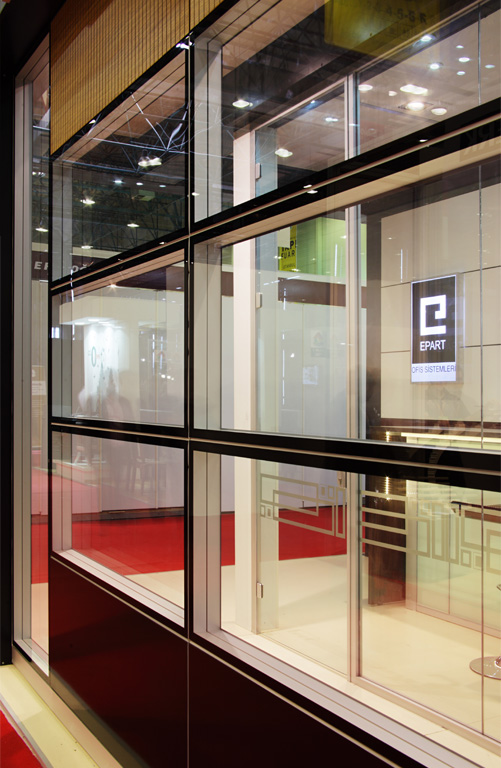

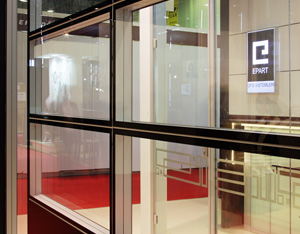

The floor plinth profiles used in Vip Structural, which is a double glazed partition wall system, allow cable passage and installation of electrical fixtures.
This system provides a rich appearance to your spaces thanks to the method of application compared to the double-glazed partition wall system.
With this system, you can experience the sound insulation comfort offered by double glazing systems.
Contact us for more information
| System Thickness | 100 mm |
| Profile Thickness | 1.5,1.8, 2.0 mm wall thickness |
| Profile Color | Electrostatic powder paint or anodized |
| Wick Color | Light gray or black |
| Joint Width | 8 mm |
| Panel Material | 19 mm natural, laminate or melamine veneer |
| Insulation Tape | 50 x 3 mm polyethylene sound insulation tape |
| Sound Insulation | 47 db (for full modules) |
| Fire Standard | F30 (30 min) |
| Plinth Profile | The floor profile is 100 mm high to allow cable passage and the visible part is 80 mm. When necessary, the plinth cover is opened and the cable is added and data, sockets, etc. are placed on it. electrical fixtures can be installed. Level differences on the floor and ceiling are eliminated with specially adjusted feet. |

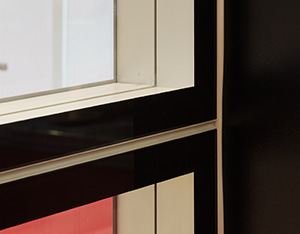

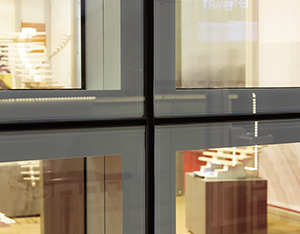

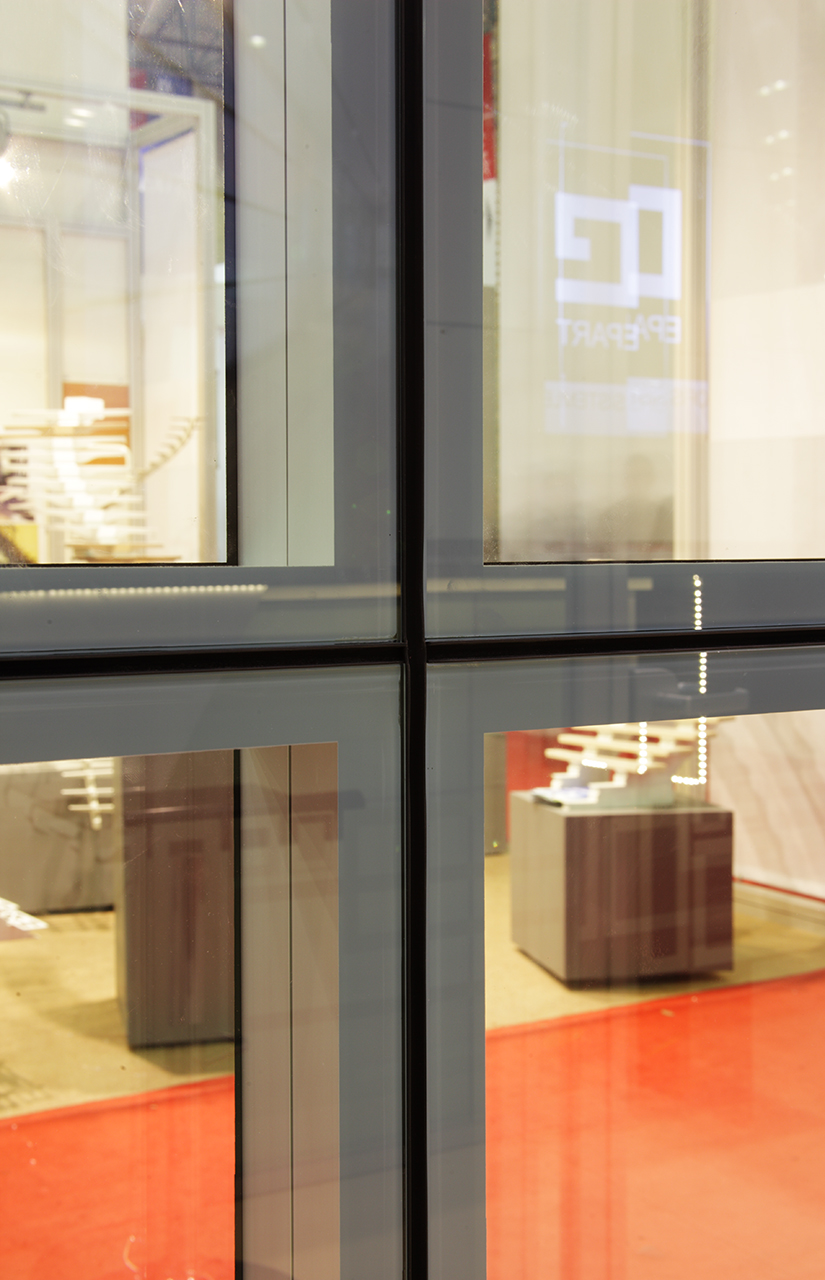

| Module Combination | The prepared monoblock cassettes are placed side by side or on top of each other to form a horizontal and vertical jointed system. Black or gray joint sealant is applied to the joint gaps. |

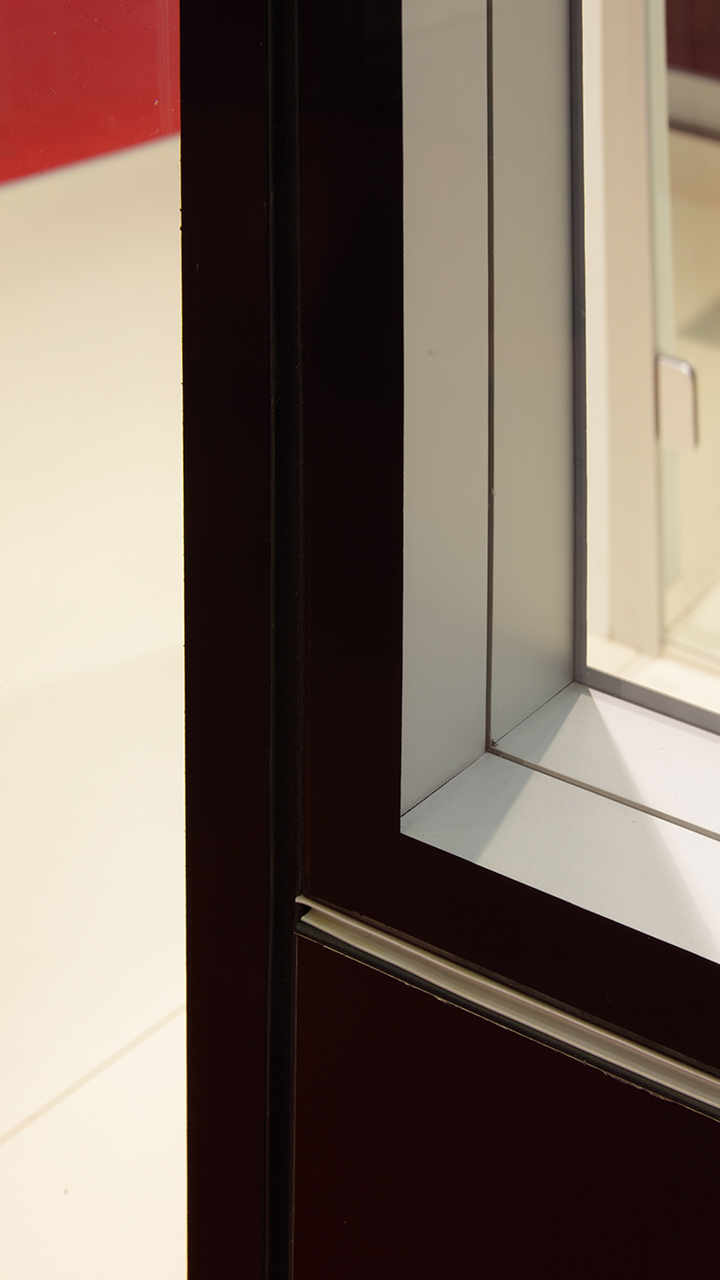

| Glazed Units | Application of prefabricated unit, which is formed with electrostatic powder painted or anodized aluminum profiles and 6 mm tempered double glass, enamel painted, grinding glass with a special bonding technique, with sandblasted glass, jalousie (full glass, half glass, solid module, horizontal glass module).. |
| Wing | Melamine, laminate, natural veneer and security glass sash |

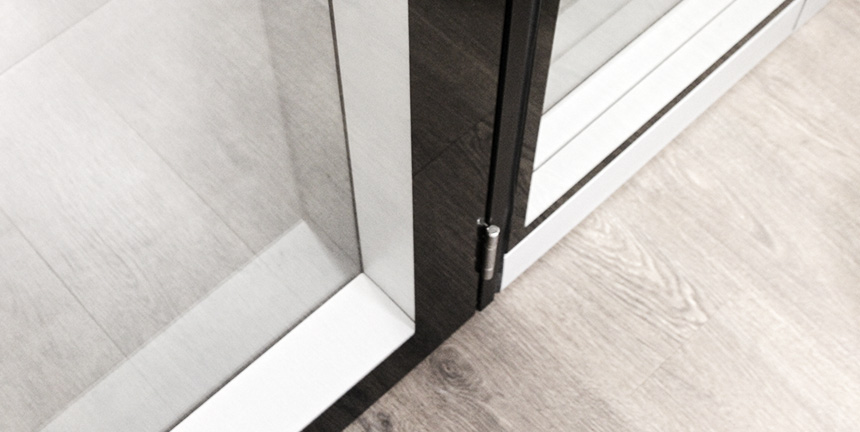

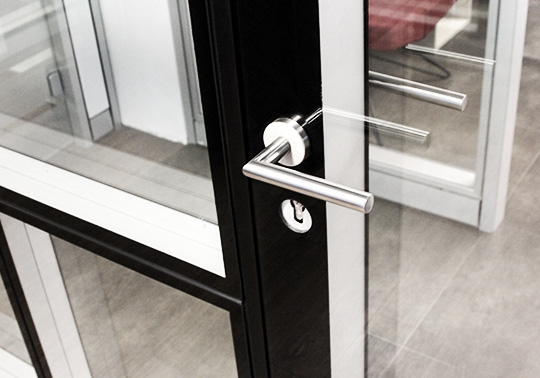

| Handle, Lock, Hinge | MAB brand lock and hinge, stainless walking stick, HAFELWERNER handle lock |
