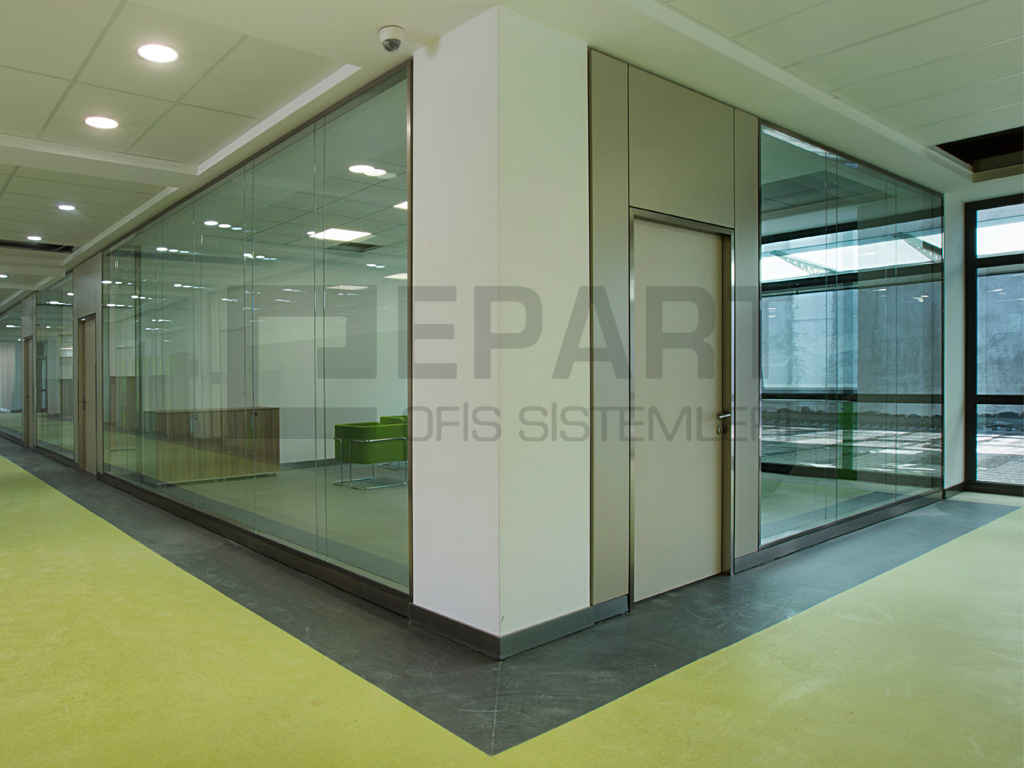

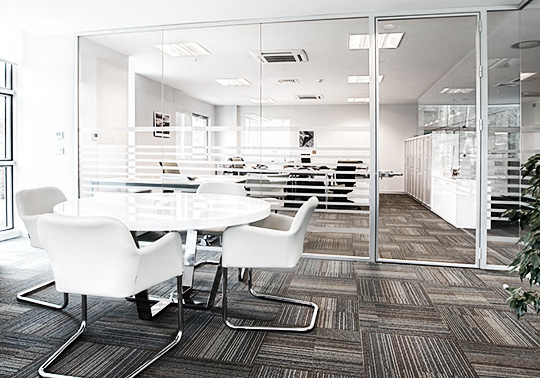

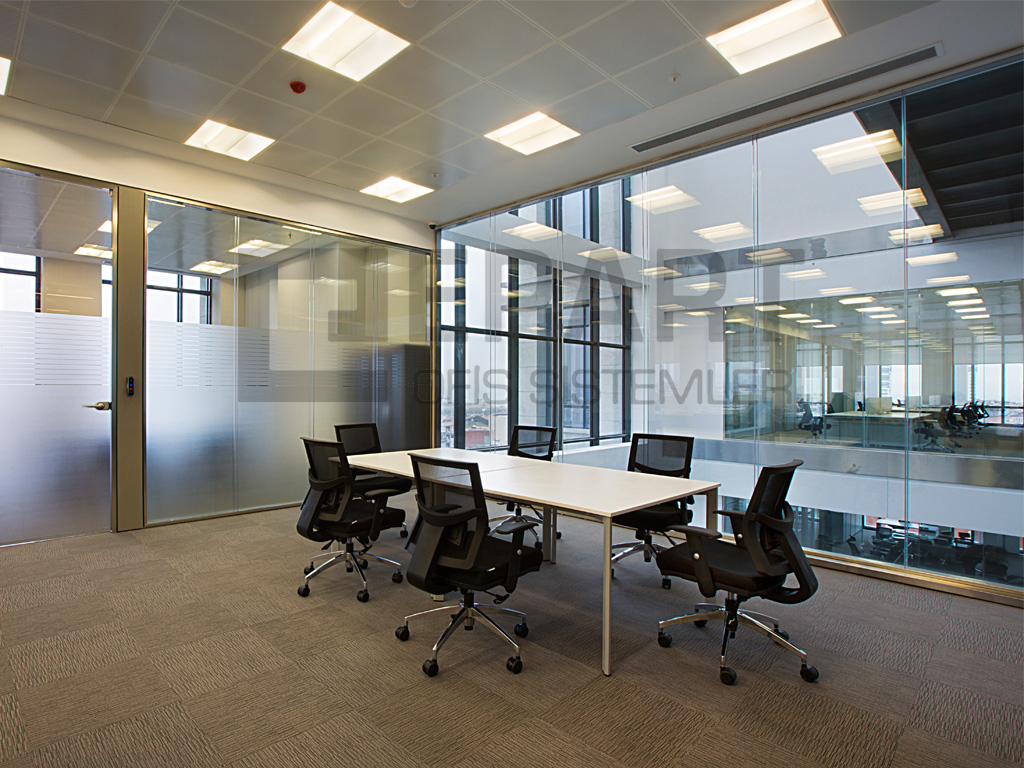

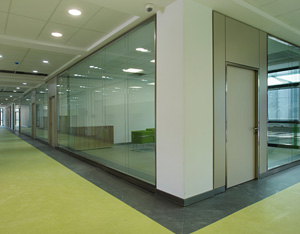

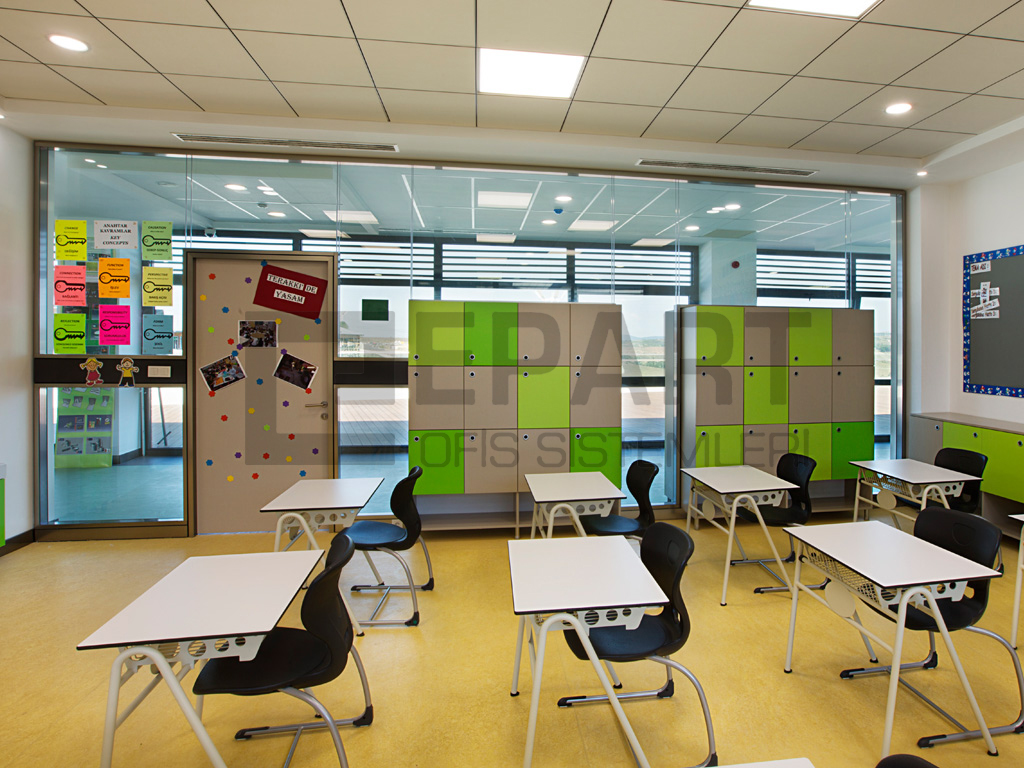

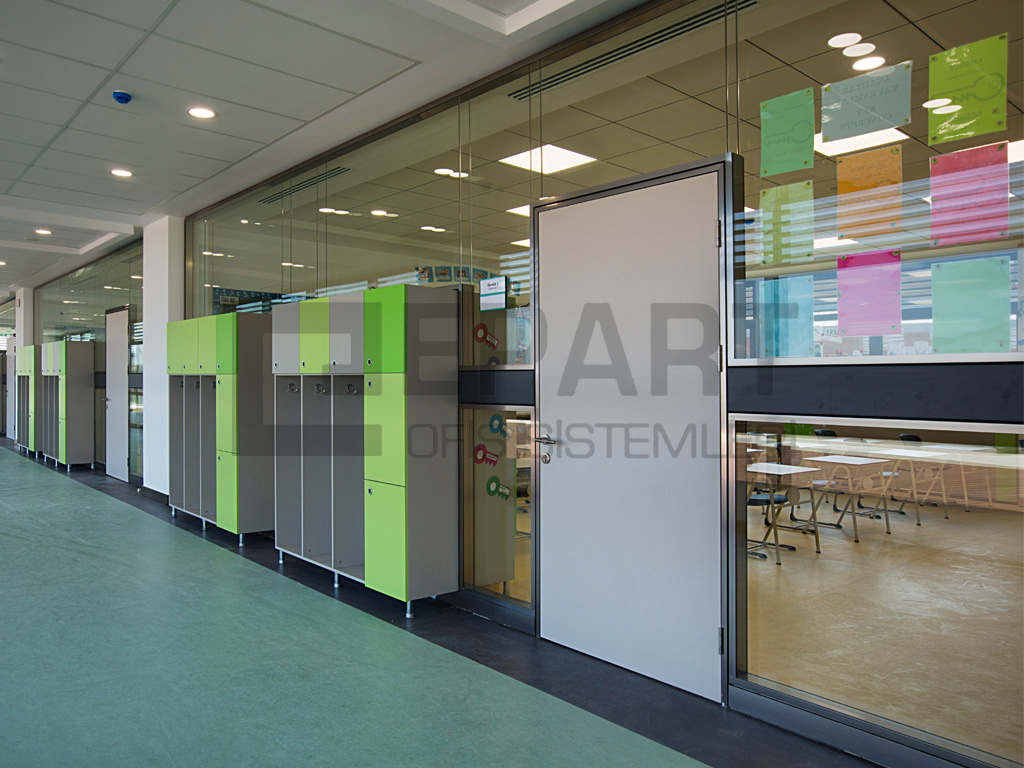

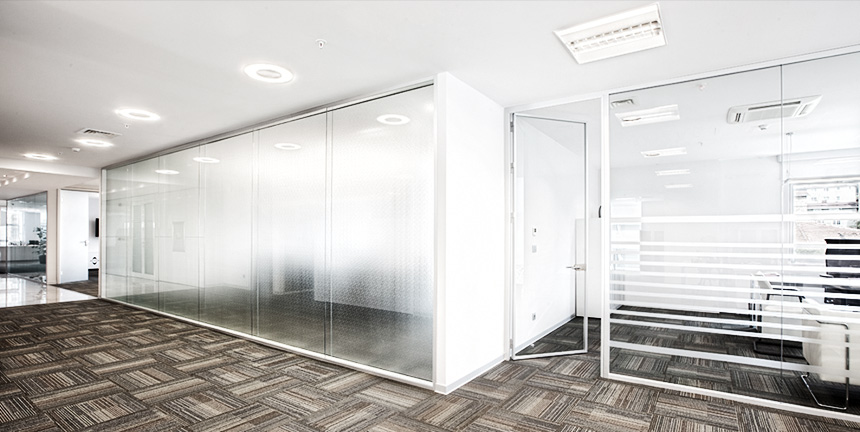

The glass-glass-double glass partition wall was developed according to the concept of increasing the insulation value of the system while considering the same aesthetic aspects.
Variant double glass partition wall uses colored, sandy glass etc. and minimum thickness profiles, creating a system with plain lines and maximum transparency.
| Wall Thickness | 70 mm |
| Widths | Preferred grids 300/600/900/1000/1100 mm |
| Heights | 2100 – 3250 mms |
| Weight | 25 – 42 kg/m2 |
| Profile System | Two-piece anodized aluminum clip-on cover – ceiling floor wall profile |
| Tolerance | +/- 10 mm in height and width |
| Glasses | 8-10 mm tempered double glass with 45 degree corner grinding |
| Vertical Connection | Transparent 'H' profile with polycarbonate-based silicone band between two glasses |
| Door Frames | Aluminum, E6/EV1 anodized, electrostatic powder paint |
| Door Wing | Melamine, laminate, solid veneer and security glass wing |
| Door Accessory | MAB brand lock and stainless cane handle and so on |

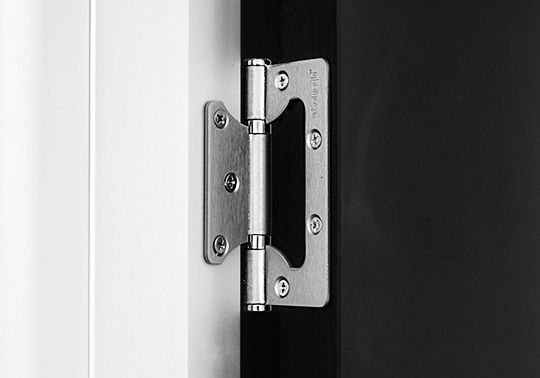

| Hinge | Aluminum or stainless hinge etc |
| Sound Insulation | Rwp < 46 db |
| Full Module | Natural, melamine or laminate covered edges with 2 mm PVC tape on both sides panel |
| Station Profile | 50*150 mm, 2mm wall thickness aluminum profile |
