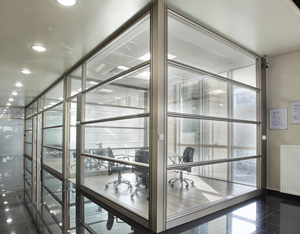

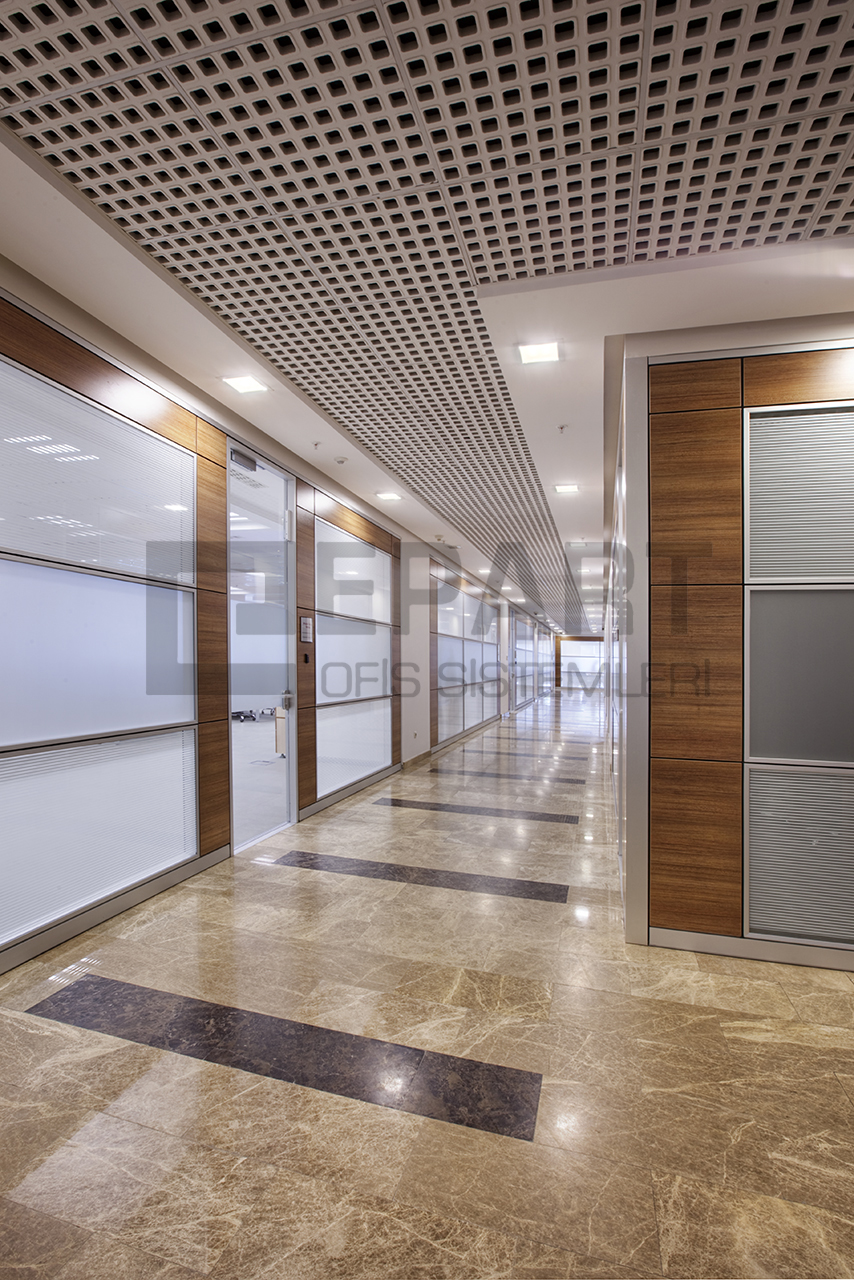

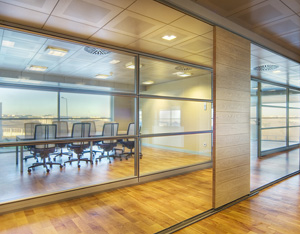

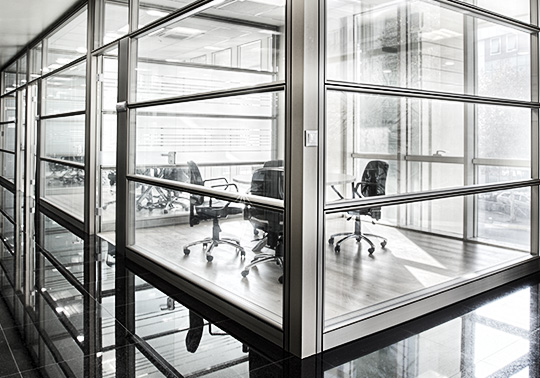

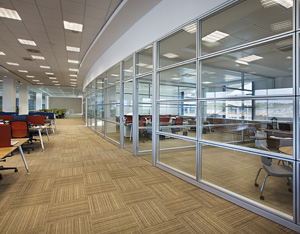

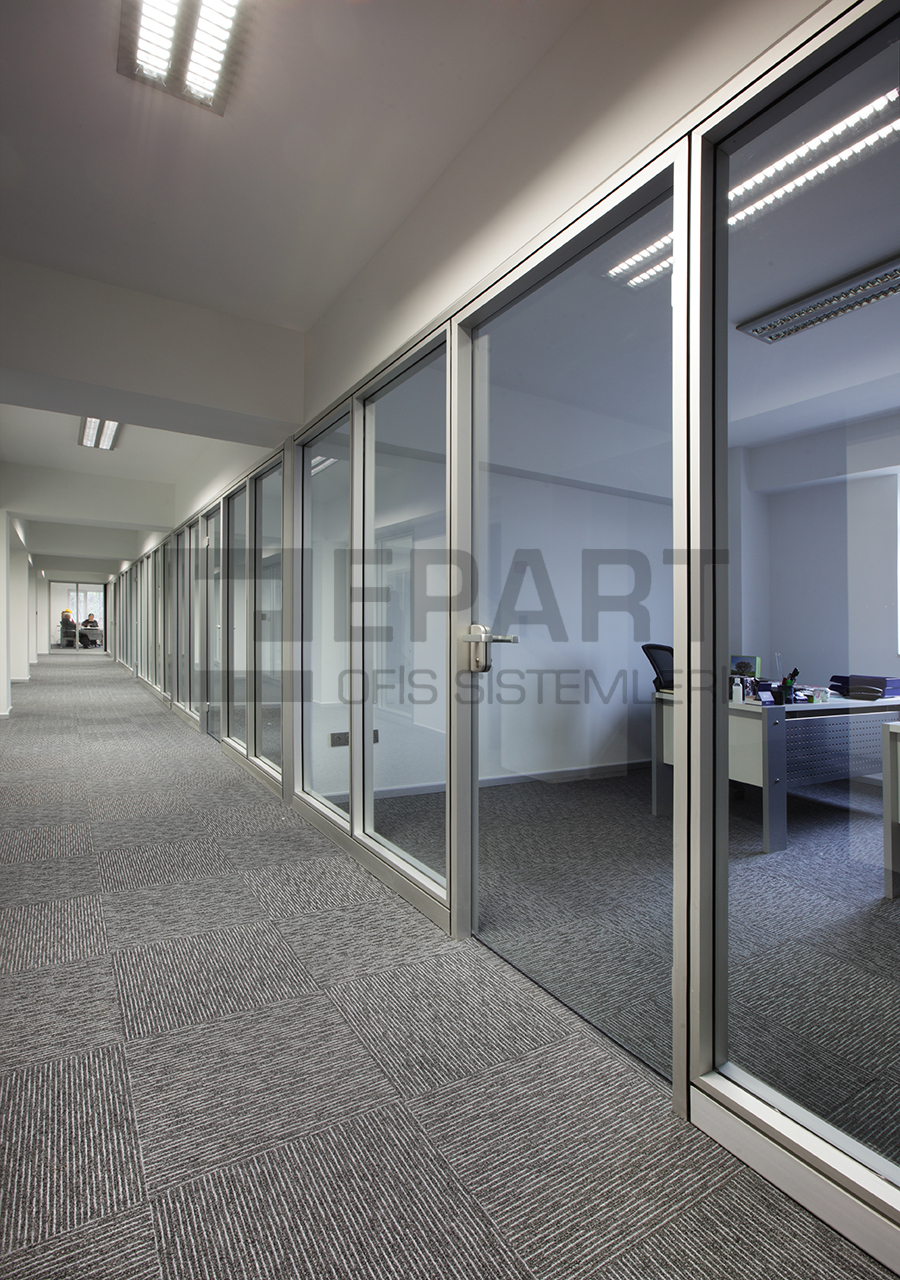

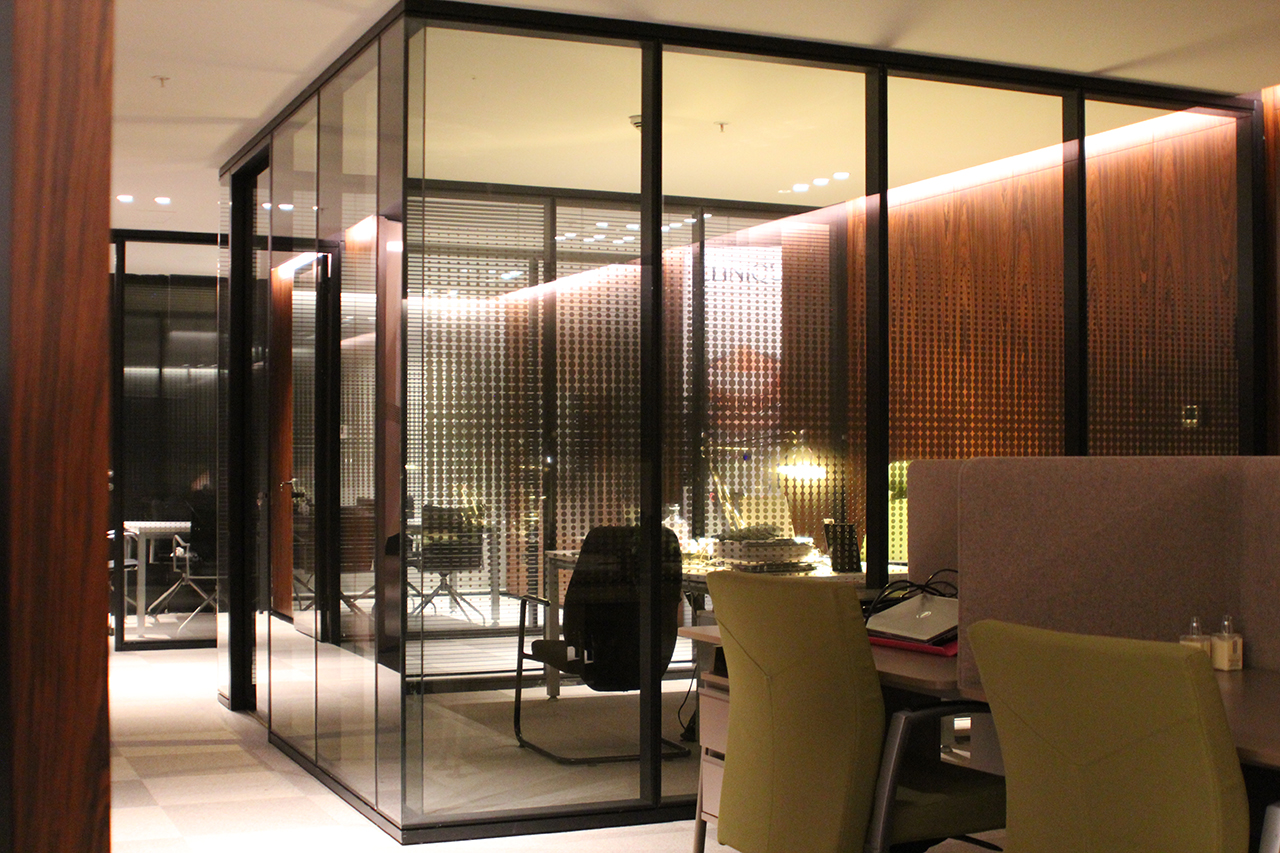

Horizontal Vertical Jointed Double Glazed System (Cassette System)

Vip Lego

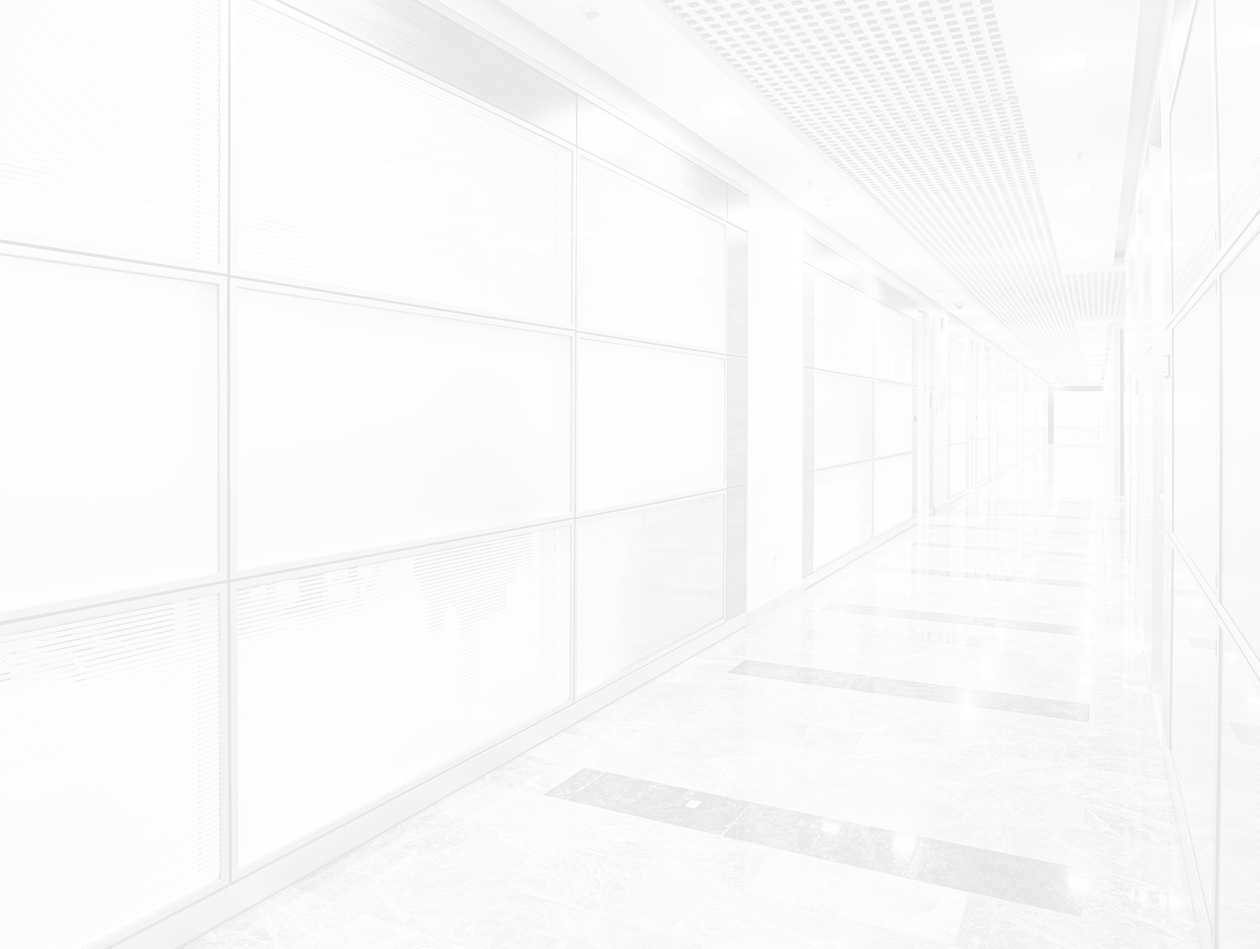

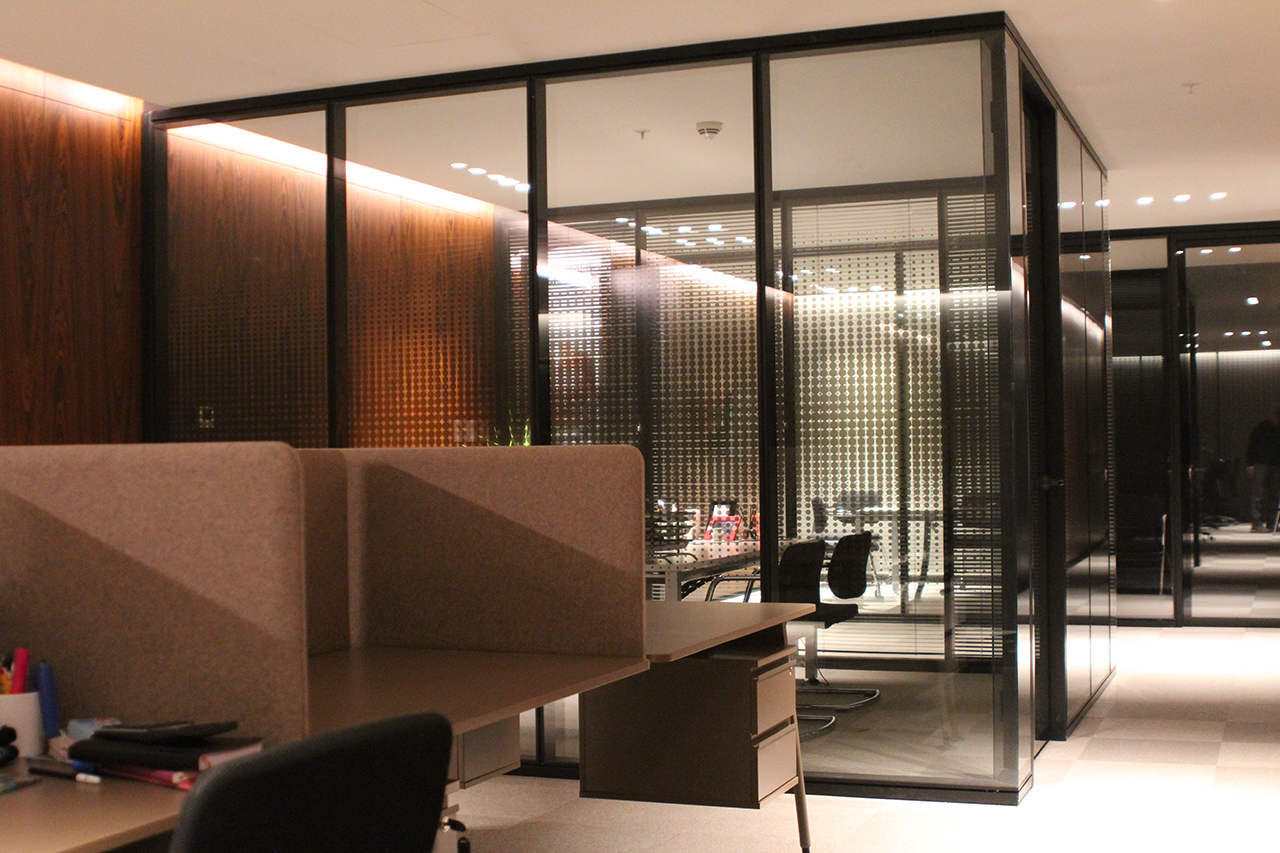

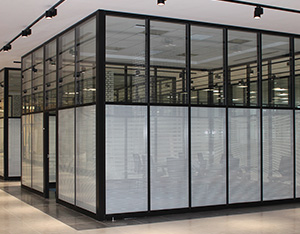

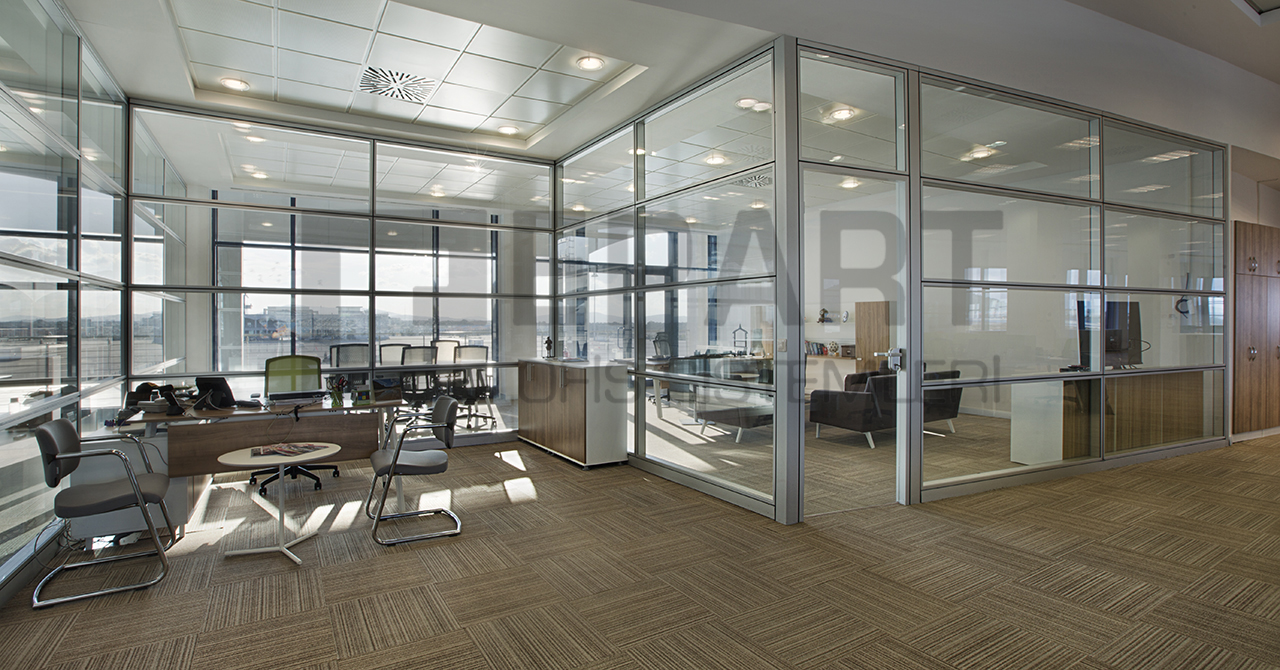

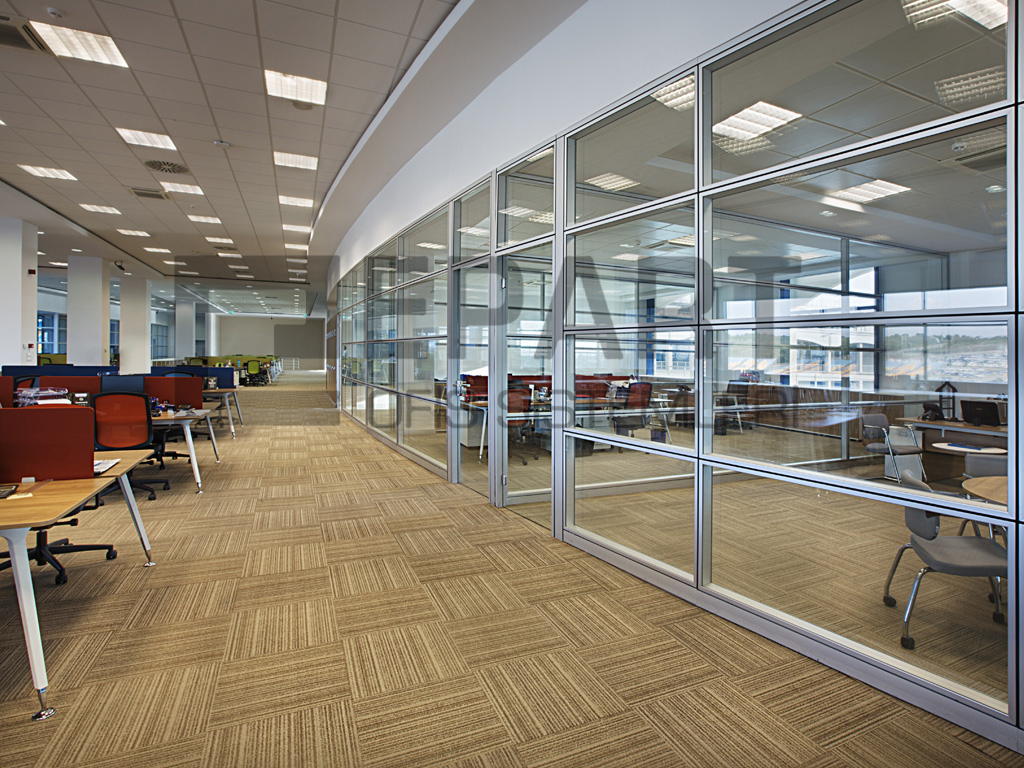

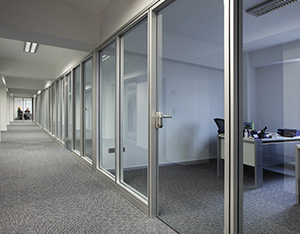

Monobloc glass partitions or complete office modular modules, also known as factory-prepared office partition cassette systems, are mounted on top of each other or side-by-side on a construction site to complete the system. Profiles used in the system; Allow the passage of installation cables. Electrical fixtures can be mounted on plinth profiles when desired.

The most important feature of the Cassette System Partition is that when changing office layouts, the glazed and solid modules of monoblock cassettes are removed instead of full modules with glass or door modules. Instead of glazed modules, you can use full-fledged modules, door modules or bookcases, shelves, etc.

Transparency in cassette system partition walls; It enables employees to communicate with each other.

When there is a change in the plan of our office or in cases such as moving, the system consisting of monoblock units provides convenience in disassembly and assembly. Pre-manufactured modules prepared in the factory, windows, blinds, etc. It is shipped to the assembly area as attached.

Developing concept-appropriate solutions in cassette systems with Vip Lego, minimalist approach.

Horizontal Vertical Jointed Double Glazed System (Cassette System)

Vip Lego

Contact us for more information

TECHNICAL SPECIFICATIONS

System Thickness 100 mm
Profile Thicknesses 1.5,1.8, 2.0 mm wall thickness
Profile Color Electrostatic powder paint or anodized
Wick Color Light gray or black
Joint Width 8 mm
Panel Material 19 mm natural, laminate or melamine veneer
Insulation Tape 50 x 3 mm polyethylene sound insulation tape
Sound Insulation 47 db (for full modules)
Fire Standard F30 (30 min)

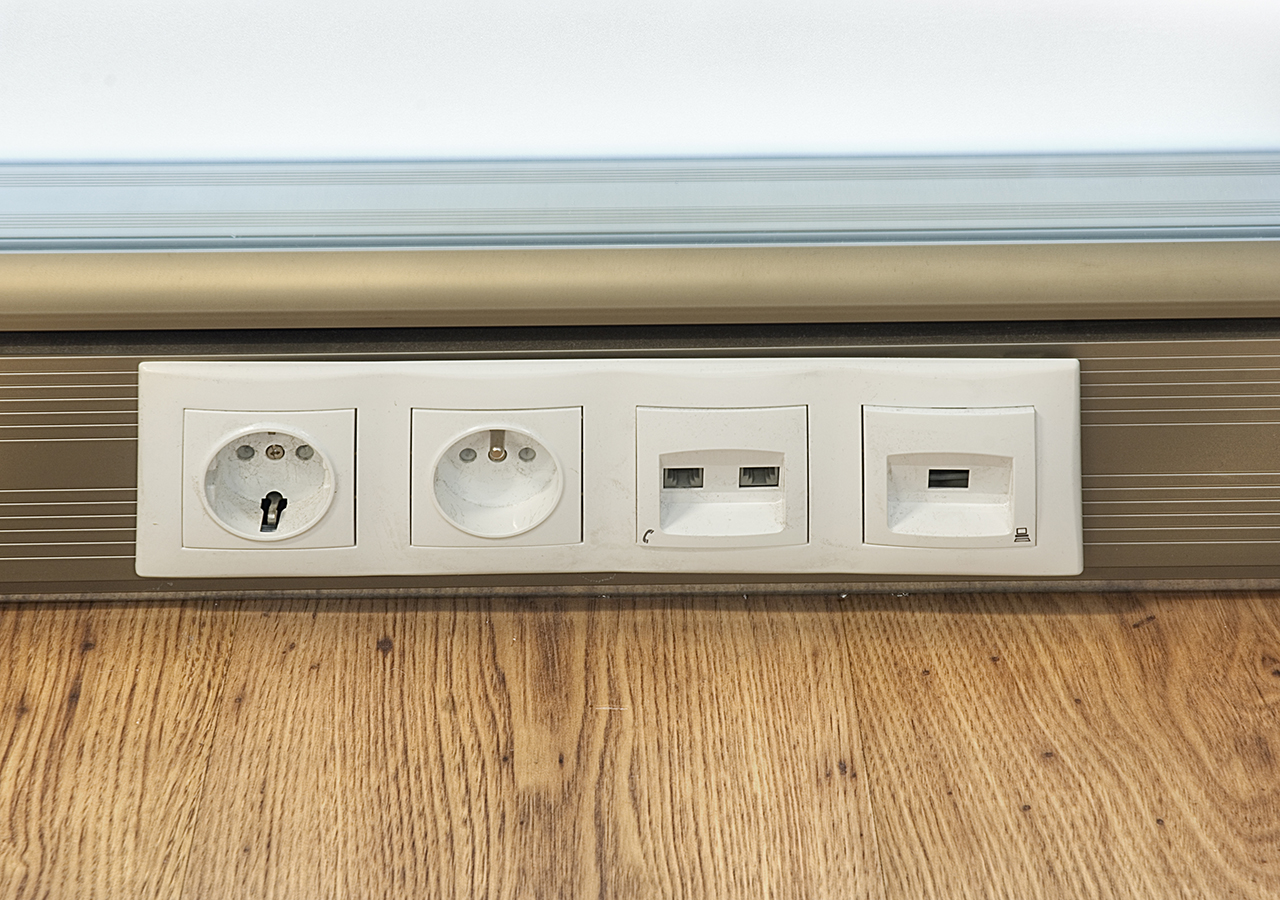

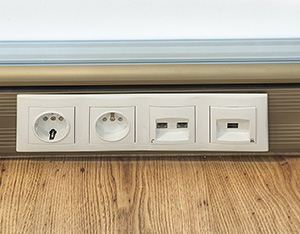

Base Profile The floor profile is 100 mm high to allow cable passage and the visible part is 80 mm. When necessary, the plinth cover is opened and the cable is added and data, sockets, etc. are placed on it. electrical fixtures mounting is possible. Level differences on the floor and ceiling are eliminated with specially adjusted feet.
Module Combination The prepared monoblock cassettes are placed side by side or on top of each other with the joint profiles to create a system with horizontal and vertical joints. black or gray joint roving is applied to the joint gaps
Glazed Units With flat or oval almond-shaped, electrostatic powder coated or anodized aluminum profiles, various prefabricated unit formed by placing double glasses of 4-5-6 mm thickness; with blinds or It offers module options with sandy glass (full glass, half glass, full module, horizontal glass)

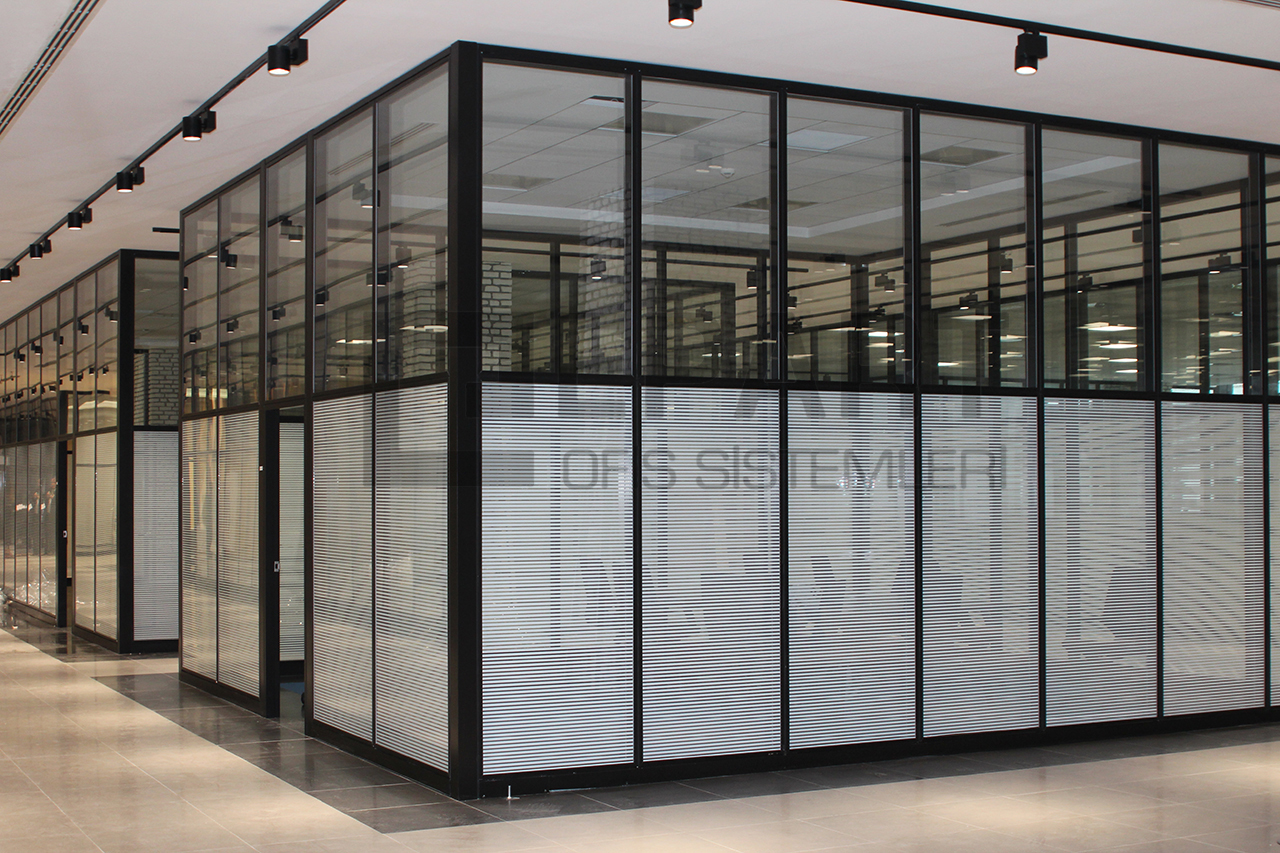

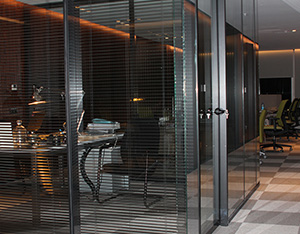

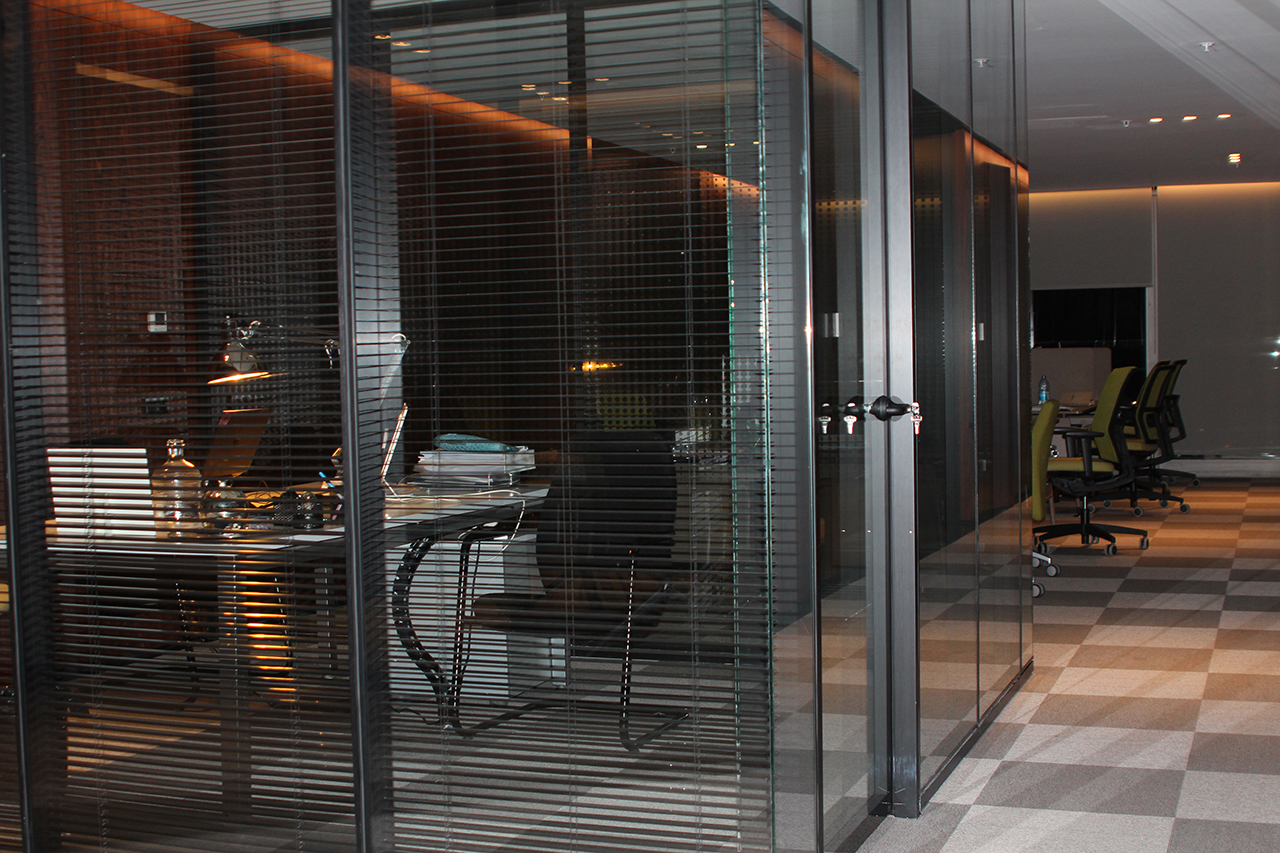

Jalousie 25 mm jalousie between double windows, button operated
Wing Natural, laminate, melamine veneer or security glass sash
Lever, Lock, Hinge MAB brand lock and hinge, stainless cane handle, HAFELE WERNER handle lock, stainless hinge etc
