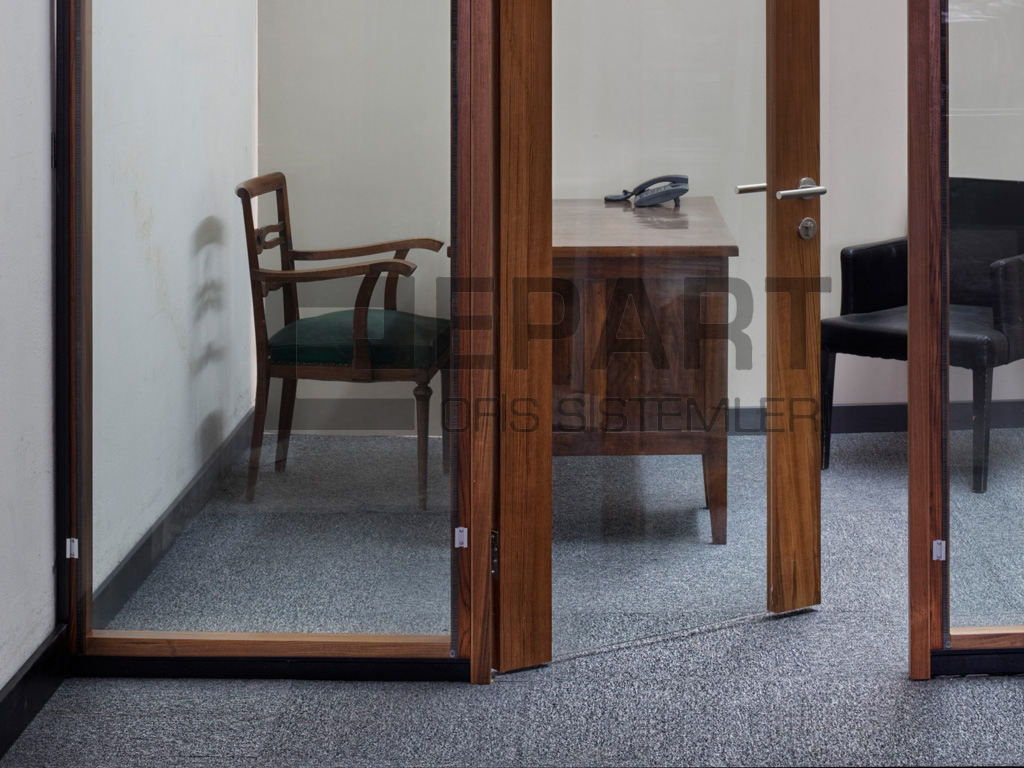

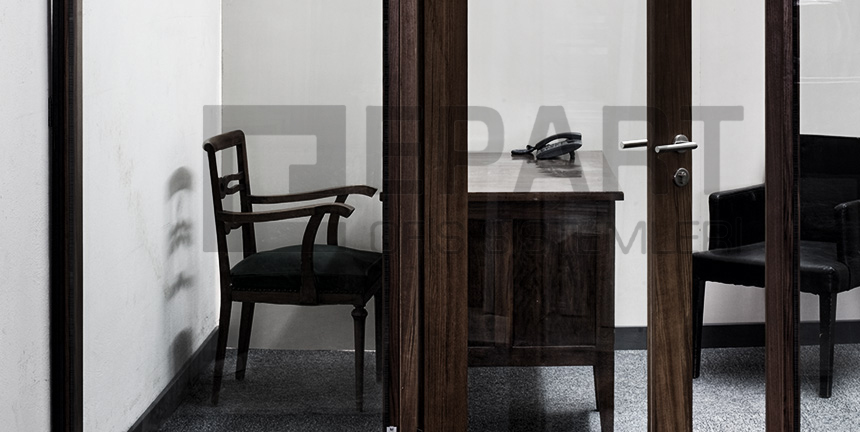

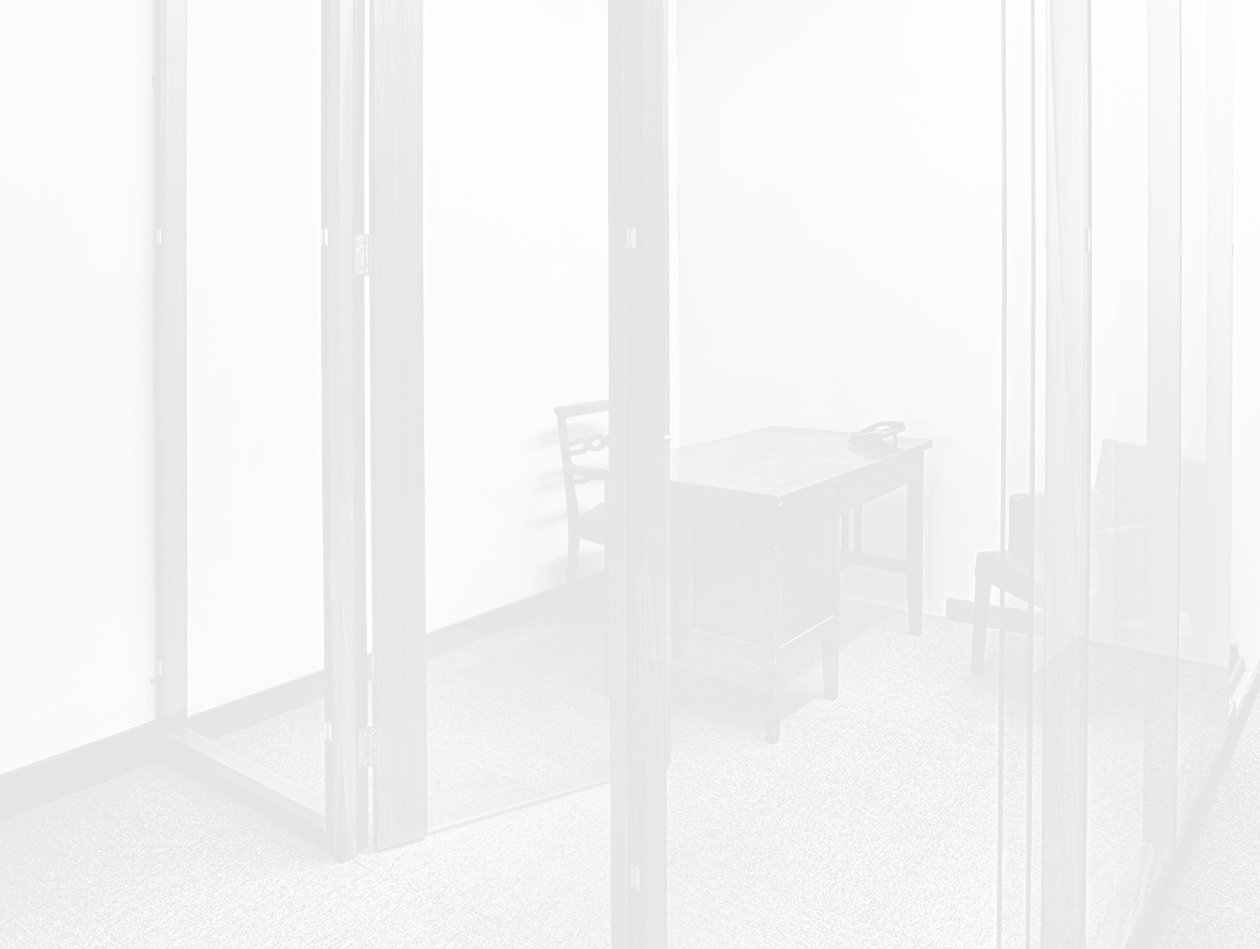

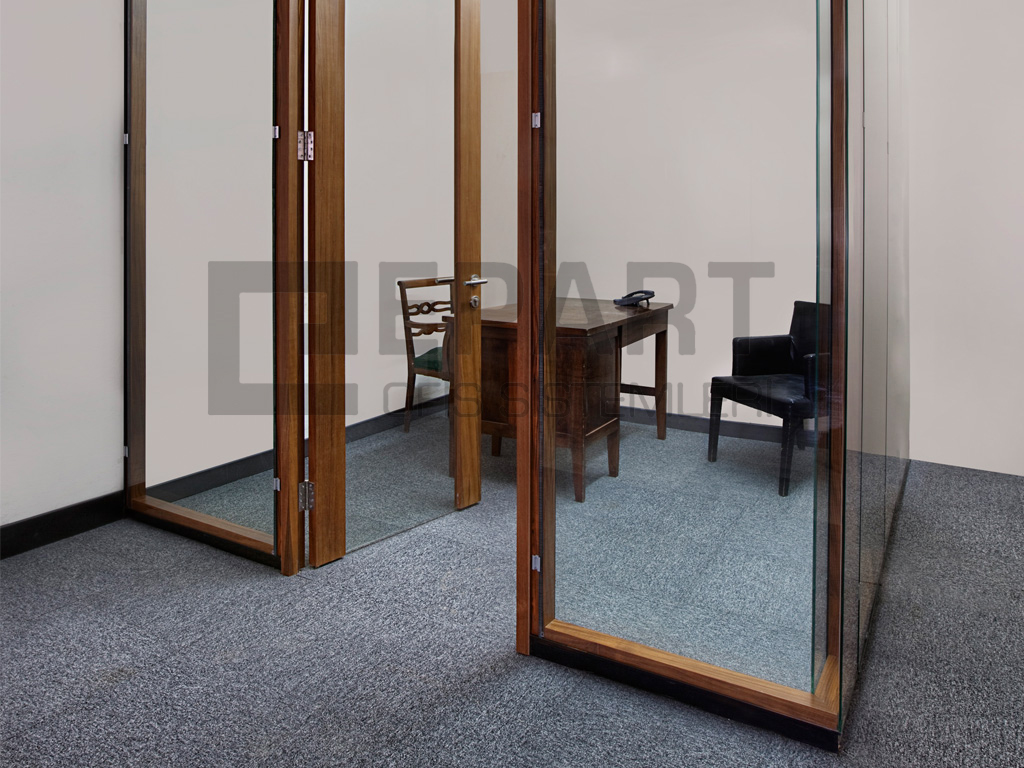

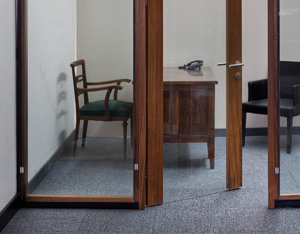

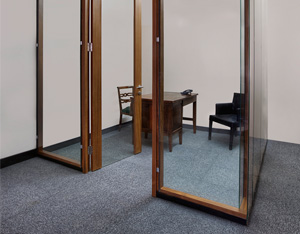

This is a modular partition wall system with double glazing that does not require pre-production, and the production and assembly of the modular system is completed on-site after the material is delivered to the site. Profiles covered with natural wood, enameled edges and painted glass have aesthetic lines and create a design that fits the concept.

This model partition wall system, born from the union of glass and wood, offers you natural and modern lines and allows your working environment to take on a more intimate concept.

You can experience the sound insulation comfort provided by double glazed systems in this system.

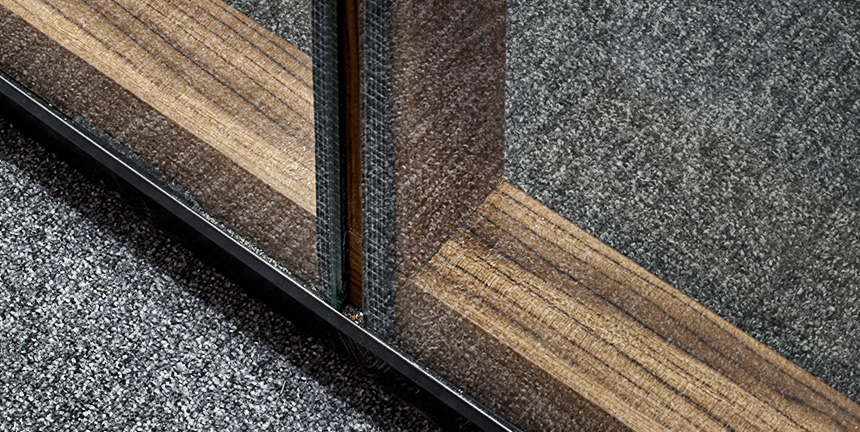

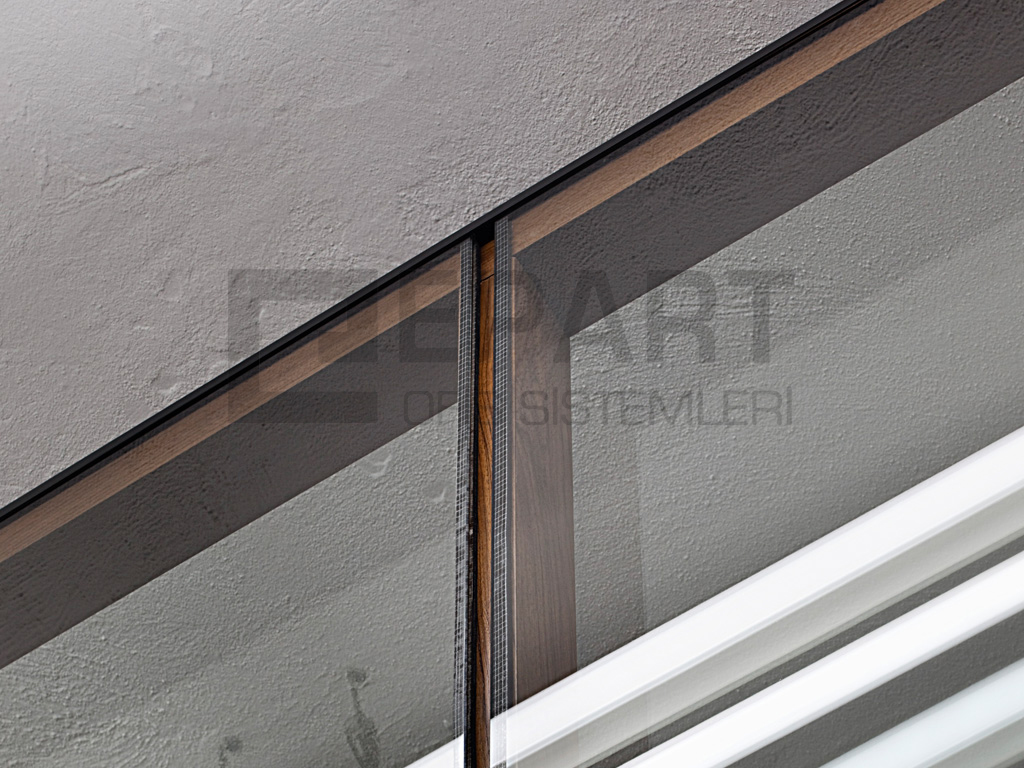

Double Glazed Partition Wall System with Natural Wood Coated Profile

E-Frame Wood

Contact

TECHNICAL SPECIFICATIONS

System Thickness	100 mm
Carrier System	Natural coated strut profile
Profile Color	According to the natural veneer type to be selected
Wick Color	Light gray or black
Module Combination	Vertical and horizontal (40/100 mm) strut profiles (balance and plumb) are connected to each other with T connection clips.
Glasses Unit	6 mm tempered lapped band border shaped enamel painted glass
Insulation Material	Glass wool or rock wool insulation (in filled modules)
Sound Insulation	42 db
Fire Standard	F30 (30 min)
Jalousie	25 mm between double glass blinds, button operated, in desired color
Wall Ends	With special wall aluminum end profiles
Door Frame Unit	Aluminum frame or natural coated. Wooden monoblock unit
Wing	Melamine, laminate, natural veneer or 10 mm tempered glass wing
Handle Lock	HAFELE WERNER brand handle and barrel lock, stainless cane handle and similar

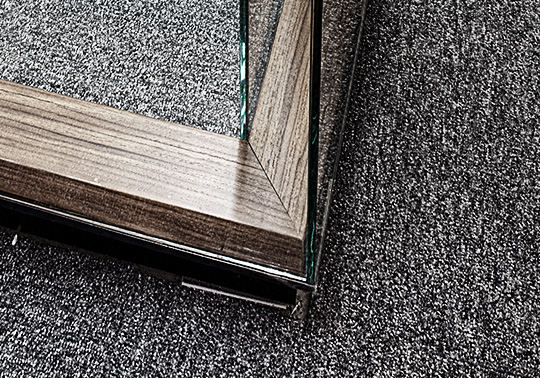

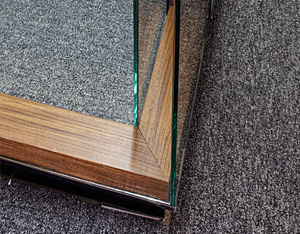

Corner Turns	90° or angled special natural coating. with wooden corner profiles or glass-to-glass joint
Tolerance	Horizontal and vertical +- 15 mm
